This manual is designed to make it as easy as possible for you
to assemble, install, operate, and maintain your ceiling fan
4
Motor Assembly—Unpacking Instructions and Parts Identification
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
.detpurretni eb uoy dluohs ecalp ruoy gnidnif ni lufpleh eb lliw dna detelpmoc neeb evah spets
Wiring outlet box and box connectors must be of type re-
quired by local code. The minimum wire would be a 3-con-
ductor (2-wire with ground) of the following size:
NOTE: Place the parts from the loose parts bags in a
small container to keep them from being lost. If any parts
are missing, contact your local retailer.
Tools Needed for Assembly Materials
One Phillips head screwdriver
One stepladder
One ¼ ”blade screwdriver
9
16
”Socket head wrench
One wire stripper
Wire Size A.W.G.Installed Wire Length
14
12
Up to 50 ft.
50 - 100 ft.
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 17)
Check to see that you have received the following parts:
Hand-held Remote
Motor Assembly
Ceiling Plate Assembly
Housing Assembly

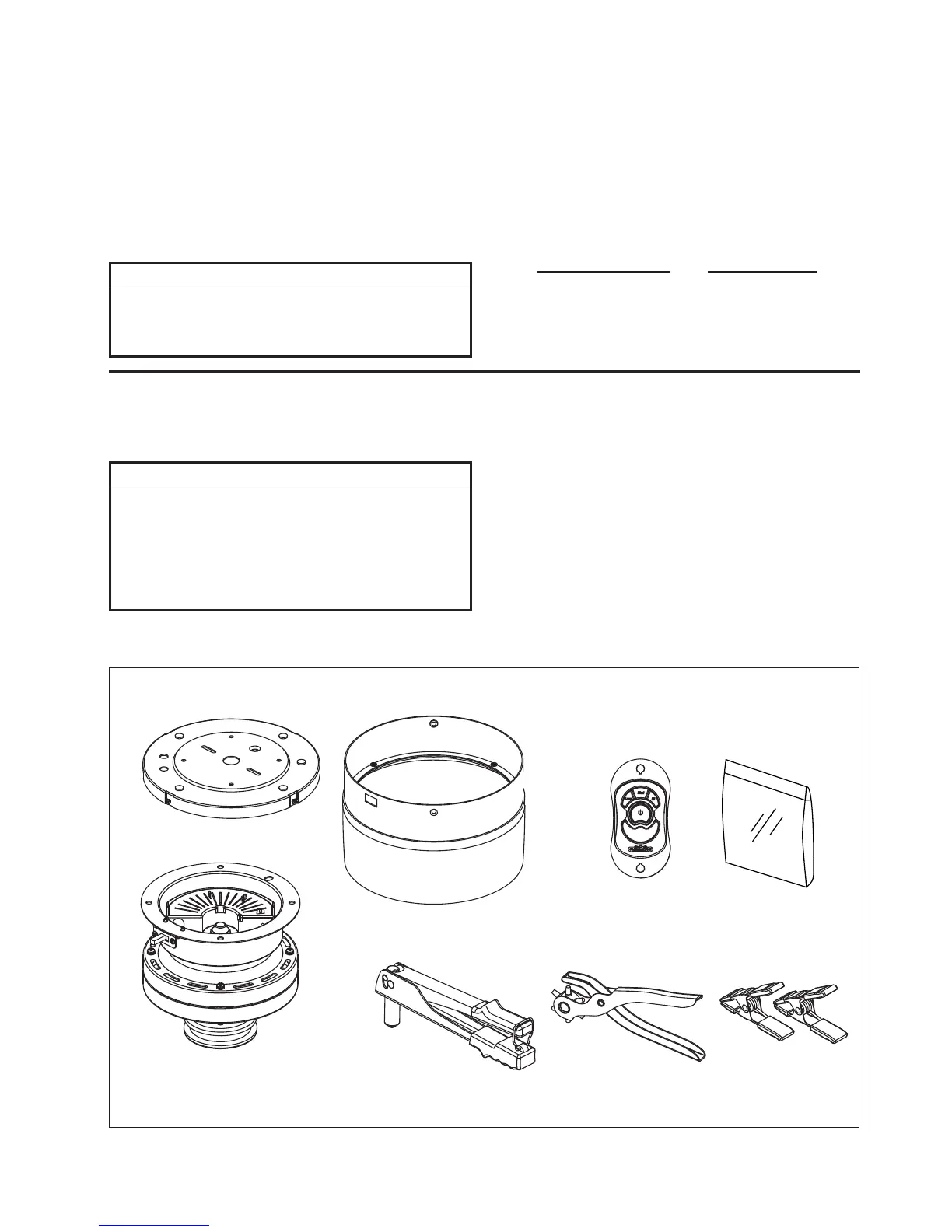

MA7966 Motor Assembly and Hardware Parts Identification
NOTE: The illustration shown is not to scale or its actual configuration may vary.
Parts and packings subject to change without notice.
Figure 1
ʆ
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 8). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
ʆ
WARNING
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product by Fanimation could
result in personal injury or property damage. Contact
your retail store for missing or damaged parts.
/
Belt ClampsRivet Tool Punch Tool
Hardware bag
+DUGZDUHEDJCeiling Plate Assembly
Motor Assembly
+RXVLQJ$VVHPEO\
Rivet Tool
Punch Tool
Belt Clamps
+DQGKHOG5HPRWH
±)LYH[Ý3DQ+HDG
Wood Screw
– Five #10 Type B Flat Washer
– Wire Connectors
±3KLOOLSV6FUHZGULYHUÝ
