BLACK WIRE
FROM SUPPLY
GREEN WIRE(GROUND)
FROM CEILING BRACKET
GREEN WIRE(GROUND)
FROM SUPPLY
WHITE WIRE
FORM RECEIVER
BLACK WIRE
FROM RECEIVER
Figure 7
x 3WIRE
CONNECTORS
HARDWARE USED:
6. Connect the green grounding lead from the ceiling
bracket to the supply grounding conductor (this may be a
bare wire or wire with green colored insulation). Securely
connect wires with a wire connector. Securely connect the
white receiver wire (coming from fan) to the white supply
(neutral) wire using a wire connector. Securely connect the
black receiver wire (coming from fan) to the black supply
wire using a wire connector. (Figure 7)
After splicing and making the wire connections, the wires
should be spread apart and turned upward with the
grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the
ungrounded conductor on the other side of the outlet box.
9

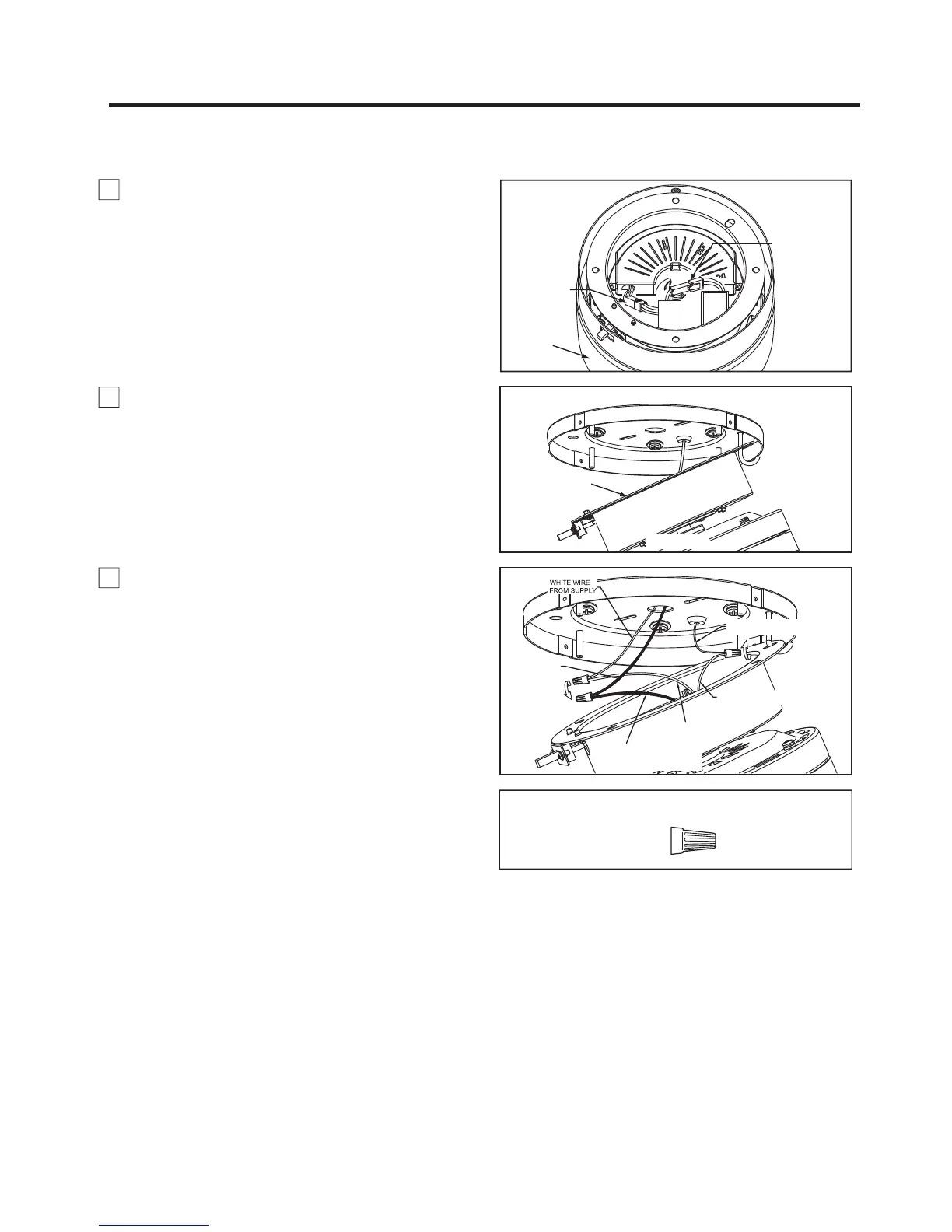

How to Hang and Wire Your Motor Assembly (continued)
If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
Motor Assembly
Figure 6
5. Hang the motor assembly as shown. (Figure 6) You can
now proceed with the electrical wiring of your fan.
4. IMPORTANT- If driving two, three or four head
assemblies with motor, make sure four-pin and two-pin
connectors are connected in the motor assembly.
(Figure 5)
Figure 5
Four Pin
Connector
Motor
Assembly
Two Single-Pin
Connector
To Next Page
