Topping up
For the type of gear oil to be used, see (LUBRICANTS) under: Gear oil.
– Unscrew and remove the filler cap (2).
– Pour in a small amount of oil and wait approx. one minute for the oil to flow uniformly inside the crankcase.
– Repeat topping up with small amounts of oil and check that the correct level has been reached.
– When the level is correct, screw the cap (2) back on and the level control screw (1).
Changing the oil
The oil should be changed when the engine is warm (to facilitate drainage), proceeding as described below.
– Place the vehicle on firm and level ground;
– Keep the vehicle upright with both wheels resting on the ground.

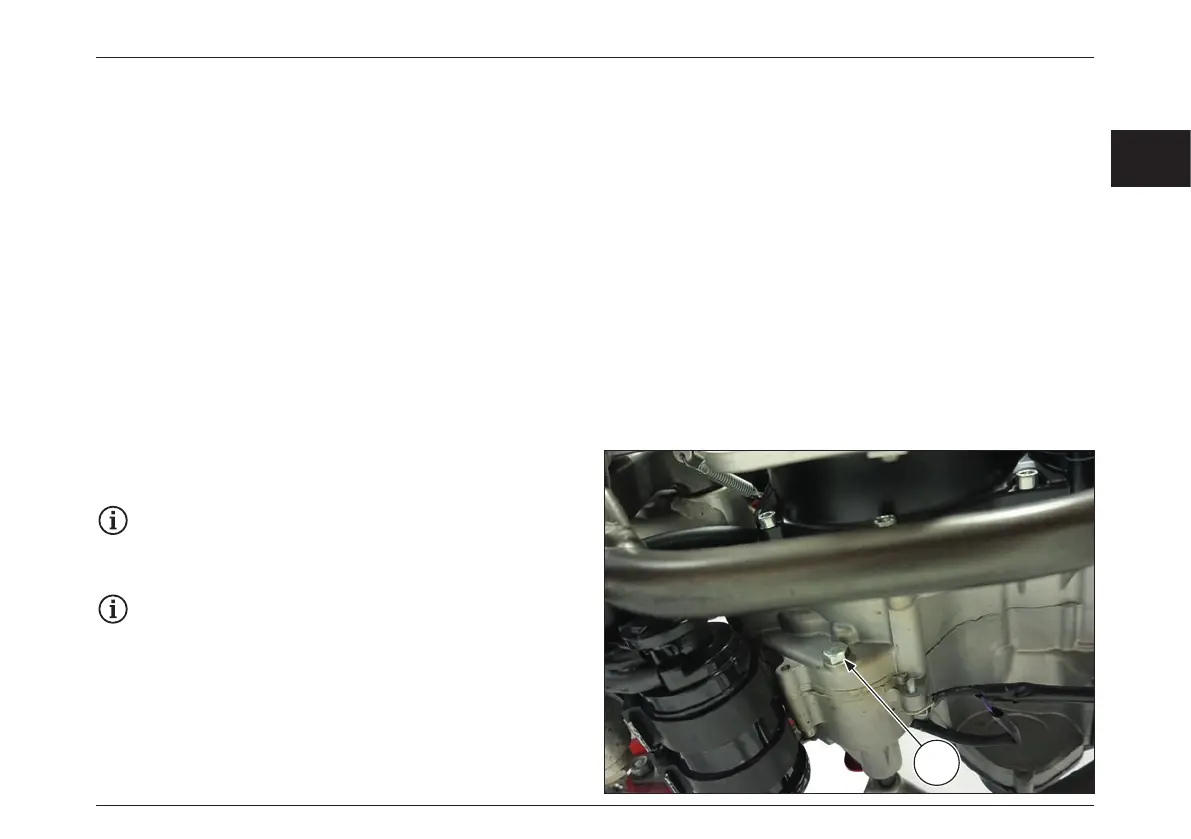

– Place a container with a capacity of over 820 cm3 under the drain plug (3).
– Unscrew and remove the drain plug (3) and the filler cap (2).
– Let the oil flow out and then drip for a few minutes into the container.
– Remove any metal residues attached to the magnet on the drain plug.
– Check, and if necessary replace, the sealing washer of the
drain plug.
It is recommended to replace the sealing washer of
the drain plug every time the gearbox oil is changed.
– Close the drain plug (3).
Torque wrench setting for drain plug (3): 15 Nm (1.5
kgm).
3
