- SCANRECO PUSH-BUTTON PANEL
You can select whether to control the outrigger functions using the buttons pla-
ced on the remote control as follows:
- Position the rotating selector on the icon . "?outriggers?" appears on
the display.
- Confirm the operation pressing contemporarily the buttons "INDEX" and
"IGNITION". "?outriggers?" appears on the display.
You can select whether to control the crane functions using the buttons placed
on the remote control as follows:
- Position the rotating selector on the icon . "?crane?" appears on the
display.
- Confirm the operation pressing contemporarily the buttons "INDEX" and
"IGNITION". The indications of the crane load appear on the display.

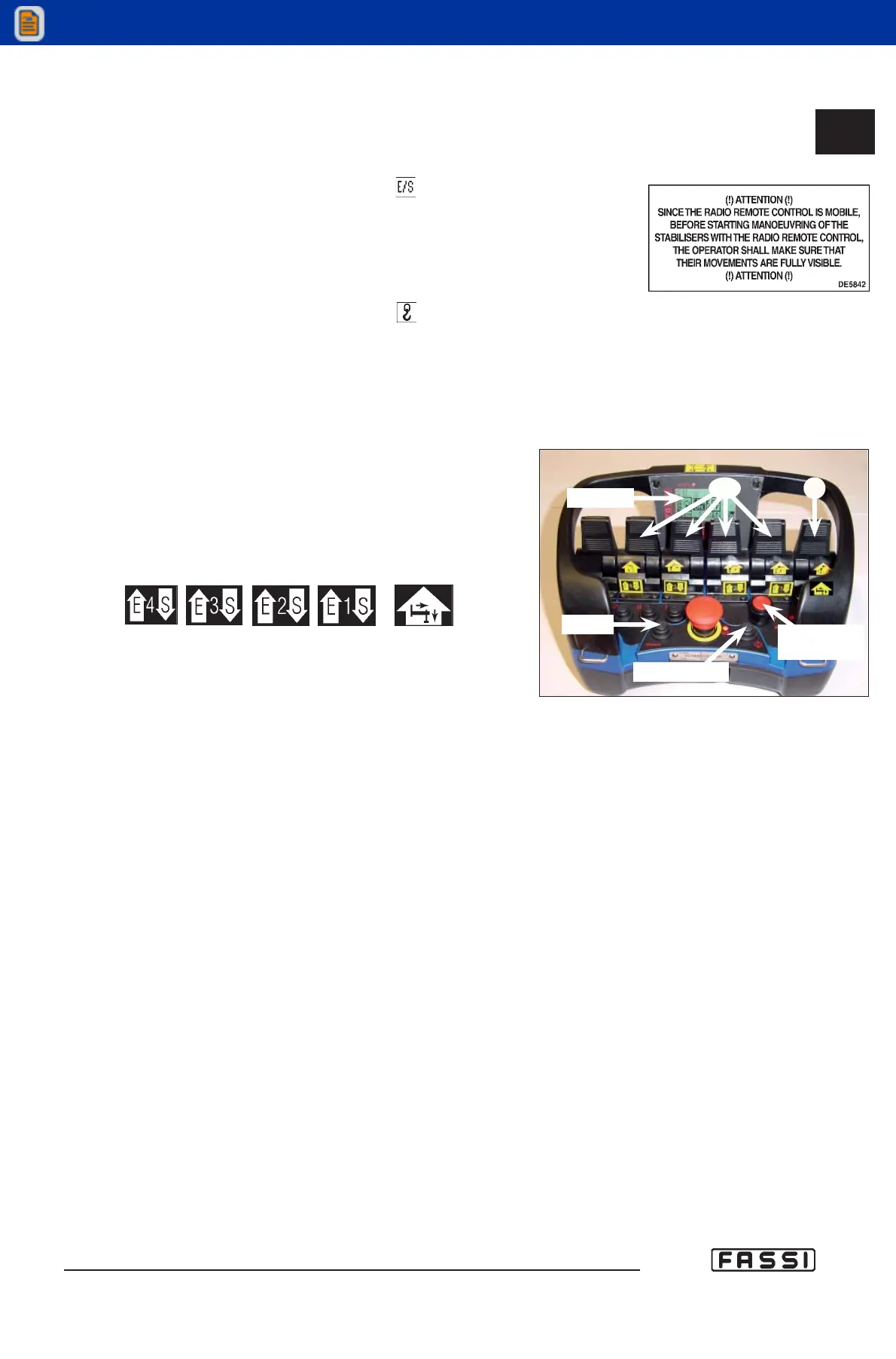

LINEAR PUSH-BUTTON PANEL (fig.3)
The first 5 control levers on the push-button panel (beginning on the
right) have two plates because they can control 5 functions of the crane
or the functions for stabilization.
Hereunder are reported the plates
indicating the stabilization func-
tions for every lever.
Rotating selector Selector of the icons on the display.
Leve CD Controls for the selection of the outrigger supports and
of the outrigger rams.
Leva C Control of the selected outrigger support or ram.
LEVERS CD
LEVER C
LINEAR PUSH-BUTTON PANEL
CD
C
DISPLAY
ROTATING
SELECTOR
INDEX
fig. 3
IGNITION
13.2.2
SUPPLEMENTARY BEAMS
GR3_4_5 - EVOLUTION
