14.3

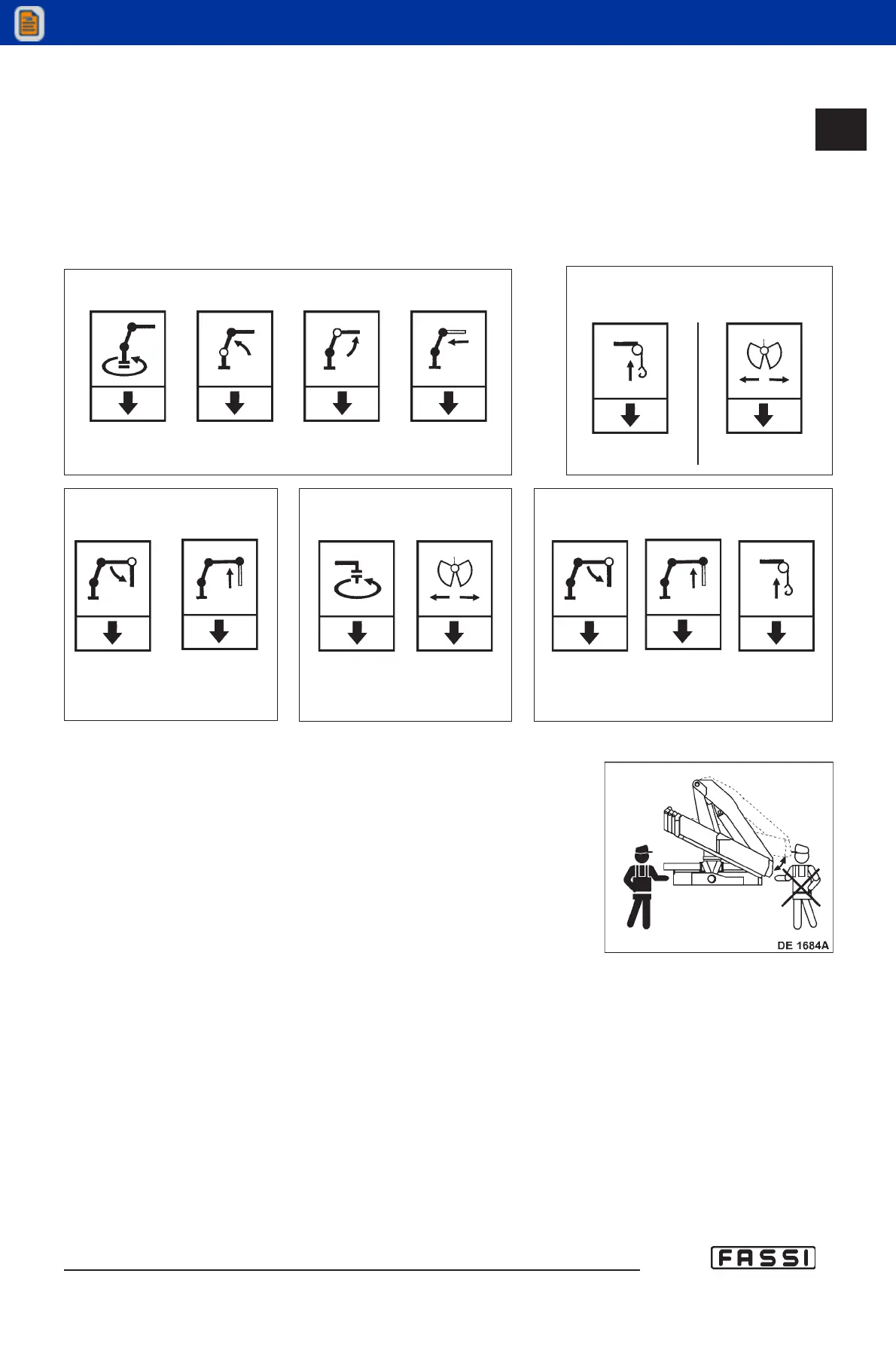

CONTROLS TO
OPERATE THE CRANE
GR5 - EVOLUTION
VERSION WITH HORIZONTAL CONTROLS (top seat controls)
(!) ATTENTION (!)
The sequence of the plates placed on the crane controls may be diffe-
rent. Make sure that the lever you are going to operate correspond to the
control you selected.
(!) ATTENTION (!)
Operate the levers smoothly and gradually.
When carrying out simultaneous movements of two or more functions,
also related to pump flow and lever travel, it is possible that on reaching
the stroke end of a particular function, an increase in speed of the other
functions will occur.
(!) ATTENTION (!)
While exiting and folding the crane, you must operate from the distri-
butor side; it is forbidden to operate from the double control side
because of the overall dimensions of the booms. (DE1684A fig. 15)
fig. 15
CRANE CONTROLS
IMPLEMENTS CONTROLS
1 Additional function
IMPLEMENTS CONTROLS
2 Additional functions
IMPLEMENTS CONTROLS
2 Additional functions
IMPLEMENTS CONTROLS
3 Additional functions
Rotation Inner Outer Extension
boom boom booms
Jib Jib
outer extension
boom booms
Jib Jib Winch
outer extension
boom booms
Rotator Bucket
Winch Bucket
