Appendix
Option for Motor Drive : Ezi-SERVO-PR-MI only

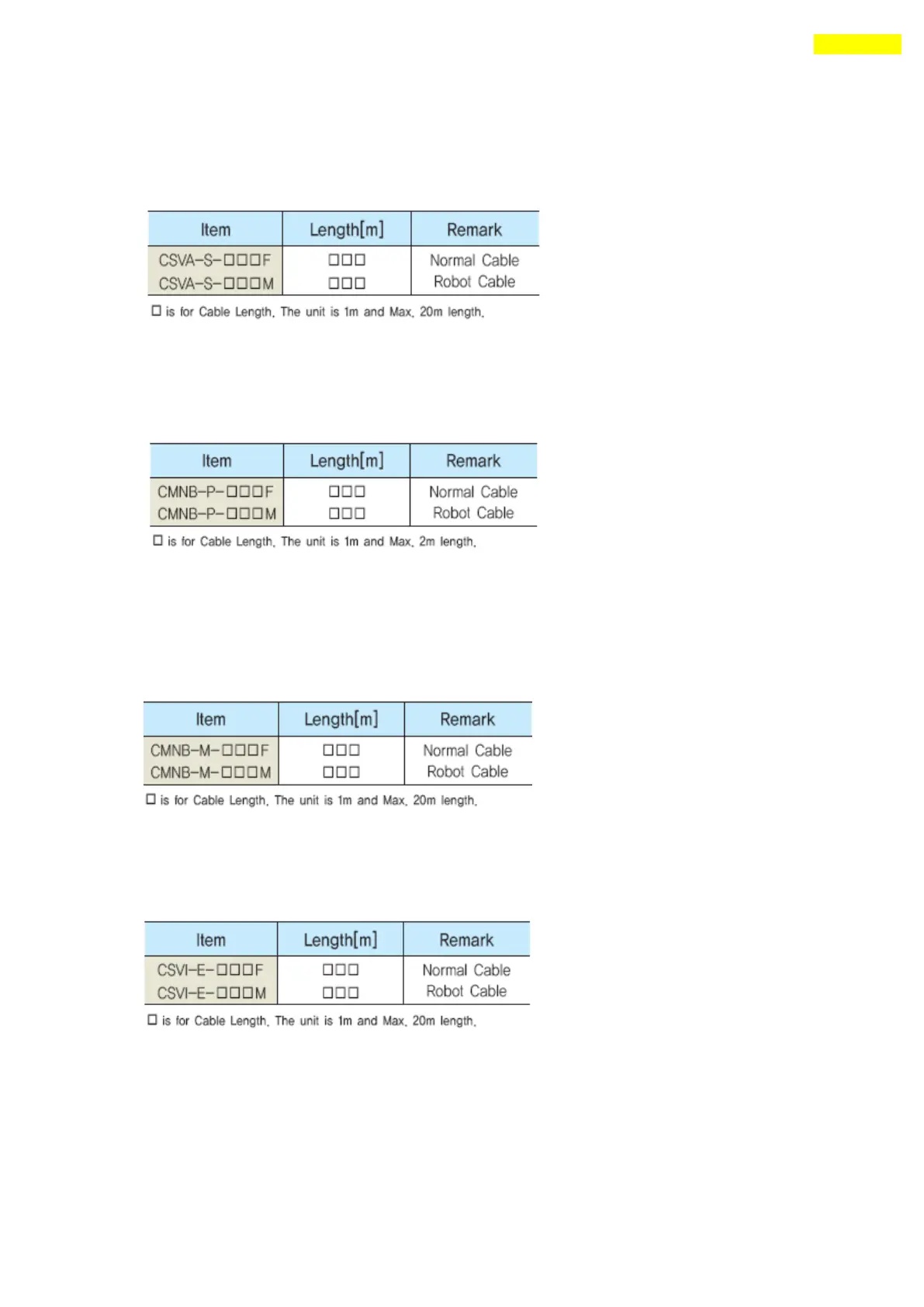

■ Cable for Input/Output Signal
Available to connect between Control System and Ezi-SERVO-PR-MI.
Refer to ① of 「5.2 Controller Configuration」.
■ Cable for Power
Available to connect between Power and Ezi-SERVO-PR-MI.
Refer to ④ of 「5.2 Controller Configuration」.
■ Extension Cable for Motor
Available to extended connection between motor and Ezi-SERVO-PR-MI.
Refer to ③ of 「5.2 Controller Configuration」.
■ Extension cable for Encoder
Available to extend the distance between the encoder and Ezi-SERVO-PR-MI.
Refer to ② of 「5.2 Controller Configuration」.
■ Connector for cabling
These connectors are serviced together with Ezi-SERVO-PR-MI except when purchasing
Option cables.
