12. Other Operation Functions
12. Other Operation Functions

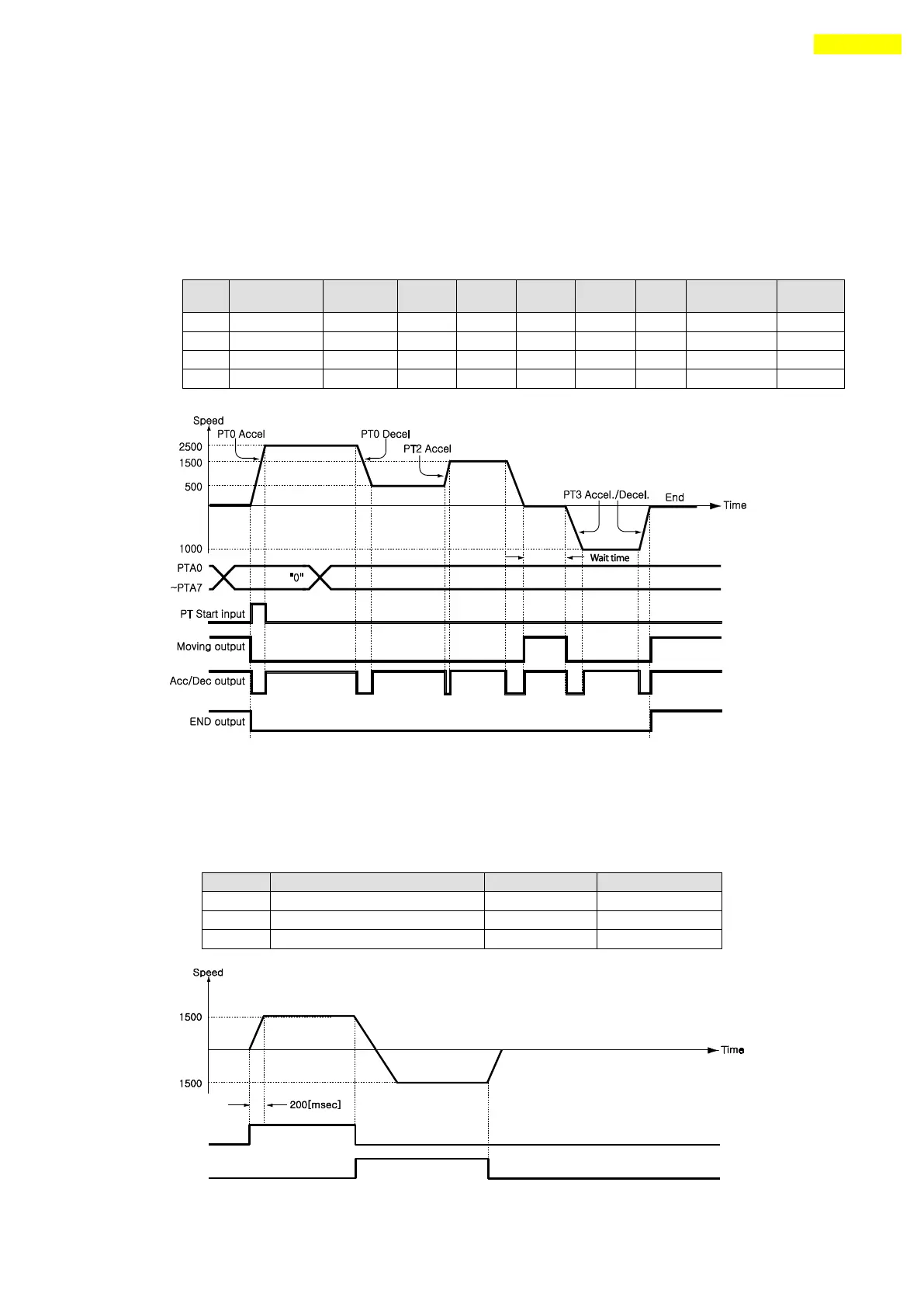

12.1 Position Table(PT) Operation Example
Input ‘PT A0~ PT A7’ signals to set PT number. Input ‘PT Start’number to execute speed
control operation. For more information, refer to 「User Manual – Position Table Function」.
【Position Table Setting】
PT
No.
Command
type
Position
Low
Speed
High
Speed
Accel.
time
Decel.
time
Wait
time
Continuous
Action
JP Table
No.
0
3
10000
1
2500
50
300
0
1
1
1
3
1000
1
500
-
-
0
1
2
2
3
5000
1
1500
50
300
300
0
3
3
3
-2500
1
1000
300
300
0
0
-
12.2 Jog Operation Example
The machine executes speed control operation at the speed set by parameters according to inputting
‘Jog+’ and ‘Jog-‘ signals.
【Parameter Setting】
No.
Parameter Name
Setting Value
Unit
6
Jog Speed
1500
[pps]
7
Jog Start Speed
100
[pps]
8
Jog Acc Dec Time
200
[msec]
