Fastech Ezi-Servo Plus R User Manual

www.fastech.co.kr
94
Appendix
Appendix

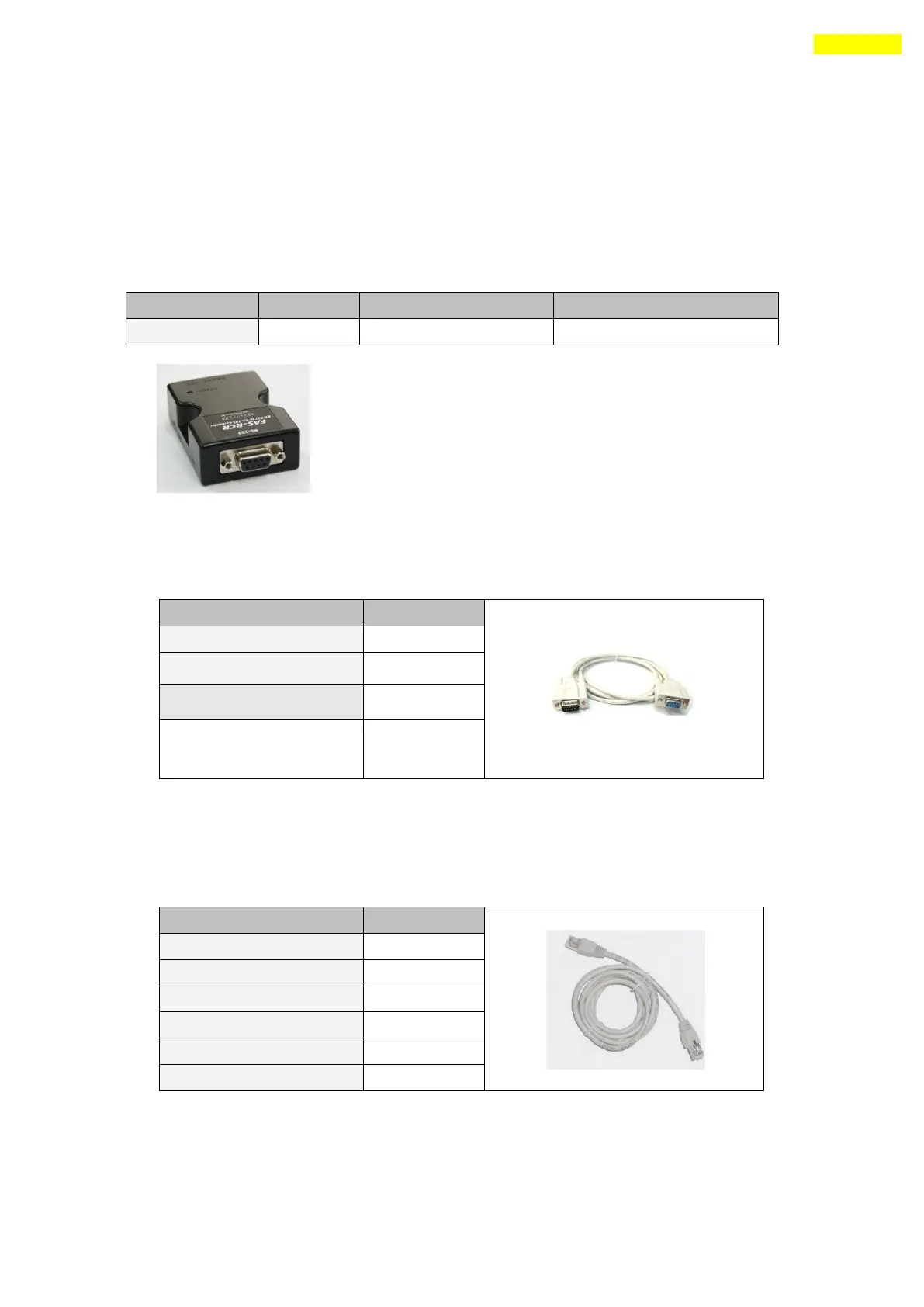

Option for RS-485 Communication
■ RS485 Converter : Common
Available to communicate between the PC and the drive. One module per multi-drop
link is required.
Type
Item
Max comm. Speed [bps]
External Power
RS485 to RS232
FAS-RCR
115,200
No need (5~24VDC optional)
FAS-RCR
■ RS232 Connection Cable for FAS-RCR : Common
Universal DB-9 male-female type cable is used.
Item
Length
CGNR-C-1R8F
1.8m
CGNR-C-003F
3m
CGNR-C-005F
5m
For more information wiring diagram and connector, refer to 「13. Communication Function」.
■ RS-485 Connection Cable : Ezi-SERVO-PR only
Universal RJ-45 (STP:CAT5E category) straight type cable is used.
Item
Length
CGNR-R-0R6F
60cm
CGNR-R-001F
100cm
CGNR-R-1R5F
150cm
CGNR-R-002F
200cm
CGNR-R-003F
300cm
CGNR-R-005F
500cm
For more information wiring diagram and connector, refer to 「13. Communication Function」.
For cabling position, refer to ⑤ of 「5.2 Controller Configuration」.
