Machine description – Instruments/Controls
02-17-2021 4812325897EN 27
Machine description – Instruments/Controls
Locations – Instruments and controls

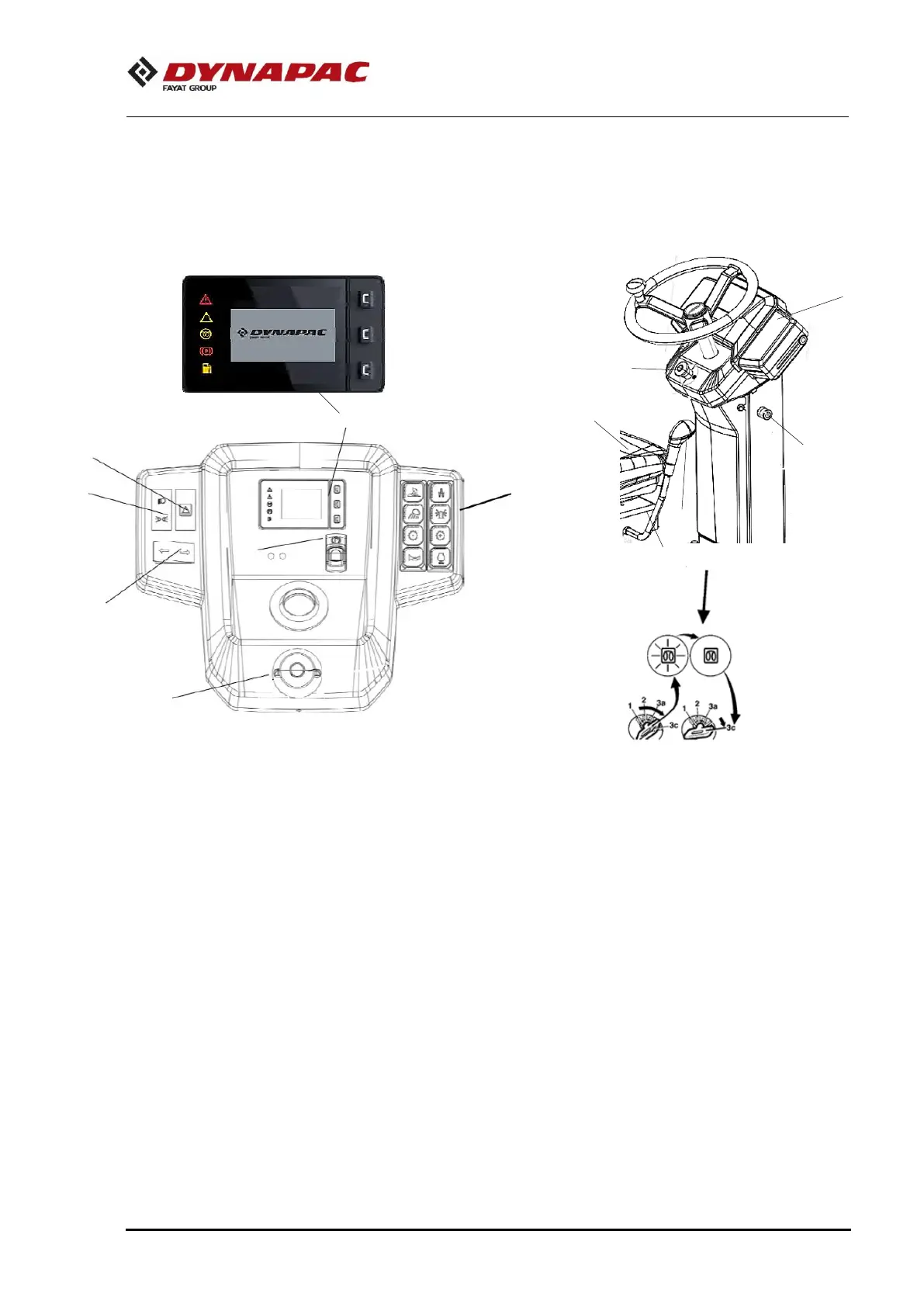

Fig. Instruments and control panel
1. Ignition switch
2. Emergency stop
3. Vibration on/off
4. Manual compartment
5. Forward & Reverse lever
6. Seat switch
7. Control protection
8. Membrane panel
9. Traffic lights switch
10. Warning lights switch
11. Direction indicators switch
12. Parking brake switch
13. Control panel
29
13
1
8
10
9
11
2
12
6
2
3
5
7
4
