A/C – System operation
Introduction
This air conditioning system is designed to provide the
operator of the equipment with safety and comfort during
the performance of his work and, consequently, increase
his productivity.
Commands

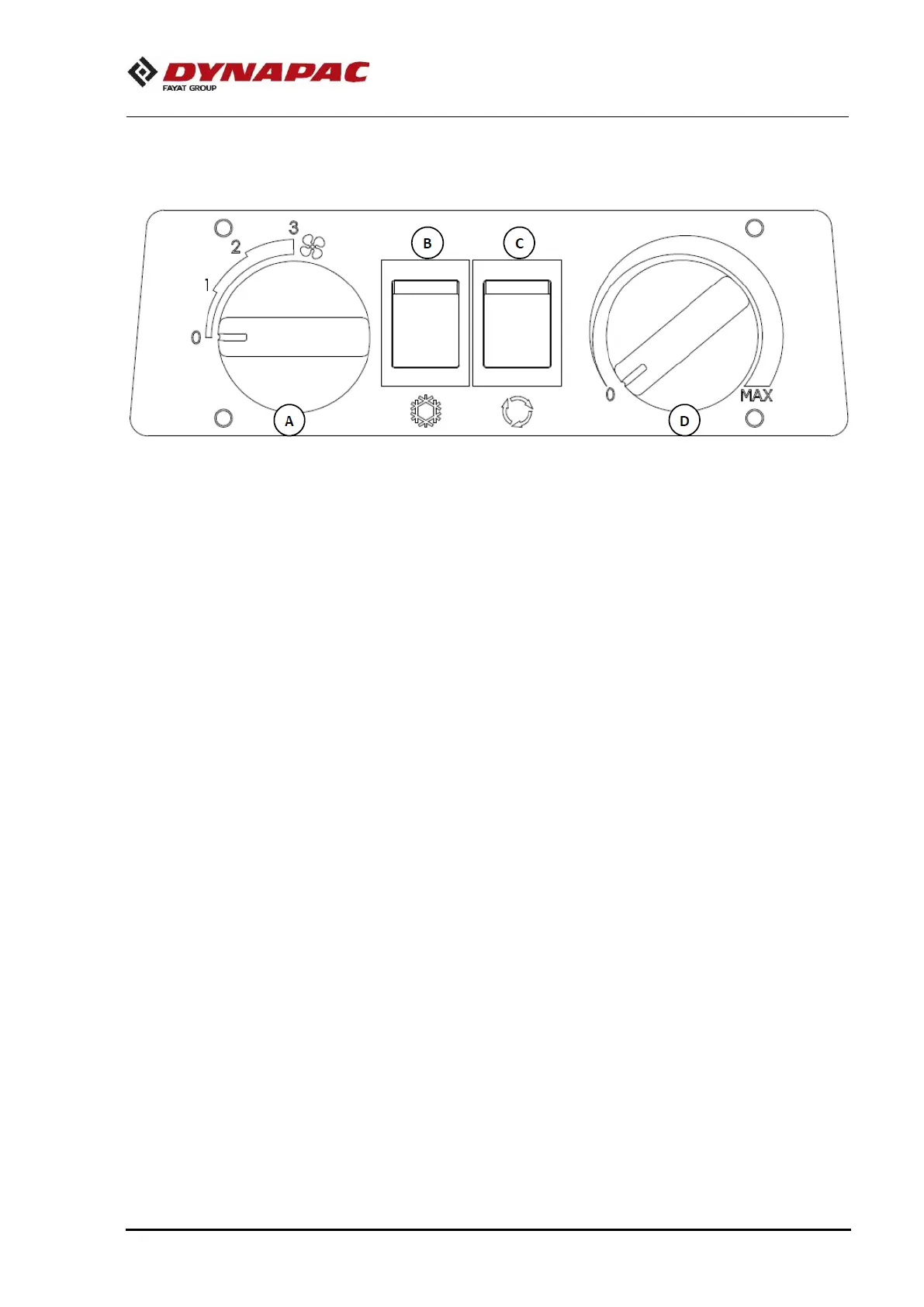

The air conditioning/heating system is operated through
the control panel located on the right roof of the cabin.
Through this control panel it is possible:
 Control fan speed (selector A).
 Actuate the air conditioning compressor (switch
B).
 Activate recirculation function by blocking the
external air entry (selector C).
 Control the temperature by opening or closing the
heating valve (selector D).
Operation
Ventilation
To use the ventilation:
 Set the selector A at the desired speed;
 Keep the switch B turn off (top region);
 Set the selector C at the desired position;
 Keep the selector D in position 0.
Heating
To use the heating:
