Machine description – Instruments/Controls
02-17-2021 4812325897EN 36

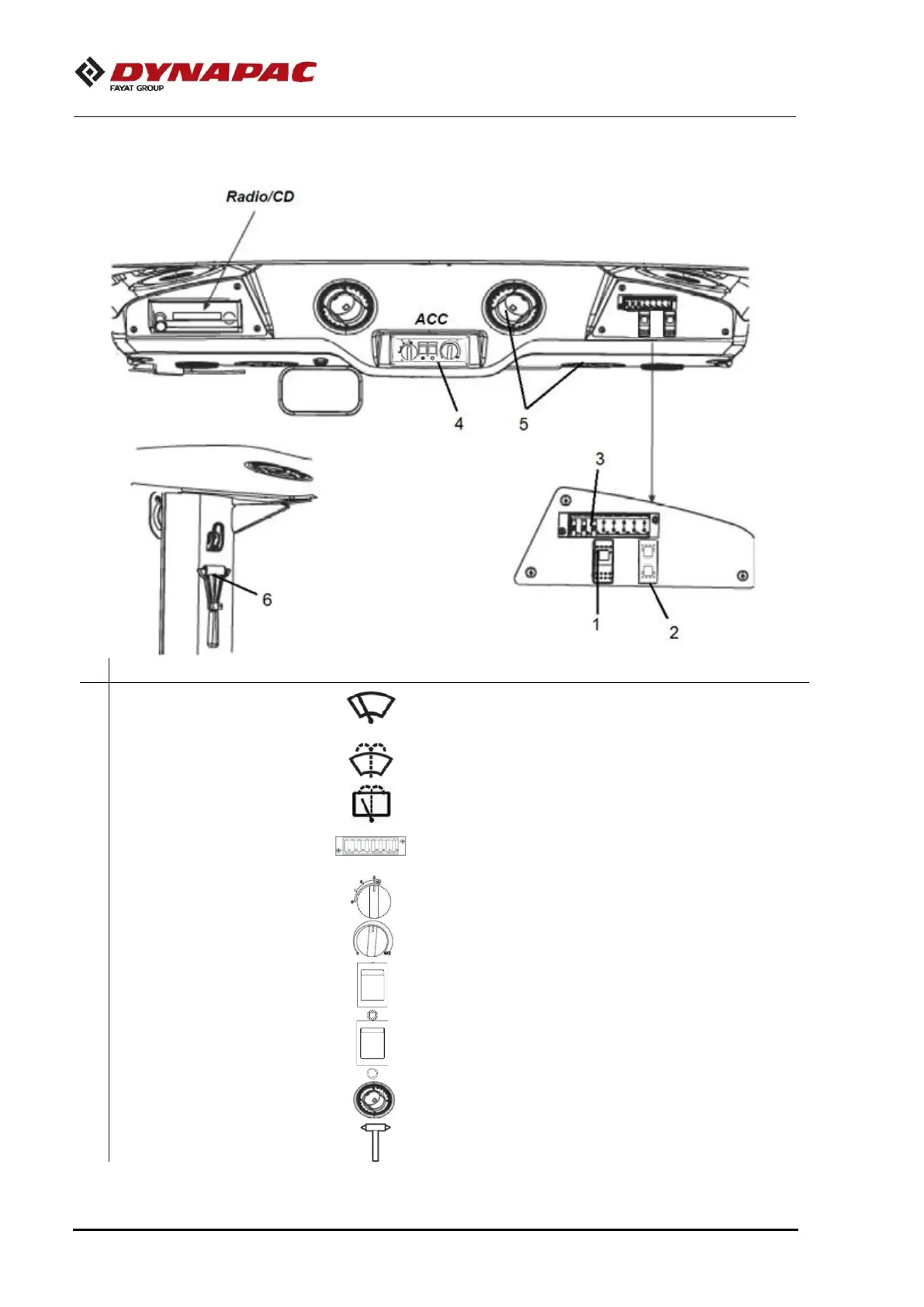

Locations – Control panel / controls / cab
Switch and Fuses
#
Designation
Symbol
Function
1.
Front wiper switch
Press to operate the front windshield wiper.
2.
Front and rear windshield
washers switch
Press the top to activate the front washers. Press the
bottom to activate the rear washers.
3.
Fuse box
Contains fuses from the electric system in the cab.
4.
Air conditioning (AC)
Analogic ventilation control (A).
Analogic temperature control (D)
5.
Compressor switch
Actuates the air conditioning compressor (B)
6.
Cab air recirculation switch
Activates recirculation function, blocking external air
entry (C)
5.
Defroster nozzle
Turn the defroster nozzle to direct the air flow.
6.
Hammer for emergency
exit
To escape from the cab in an emergency, release the
hammer and break the REAR glass.
