Machine description – Electrical System
02-17-2021 4812325897EN 40
Relay
The table below shows the amperage and function of the
fuses.
Fuse
Amperage
Function
F1
15A
Machine ECU
F2
7,5A
Machine ECU
F3
5A
Display, Keypad, Dyn@link, P-Brake Switch
F4
5A
Neutral switch, Seat switch, alternator, vibration switch (joystick)
F5
3A
Compaction Meter, Speed Sensor
F6
10A
Stereo System, Left Work Lights
F7
10A
Right Work Lights
F8
Spare
-
F9
Spare
-
F10
5A
Ignition switch
F11
10A
Power socket outlet (Platform and Rear), Dyn@link
F12
1A
ECU memory
F13
10A
Direction Indicators
F14
15A
Headlights, Position Lights
K2
Main Relay
K6.1
Right Work Lights
K6.2
Left Work Lights
K8
Headlights, Position Lights
K9
Direction Indicators
K12.1
-
K12.2
-

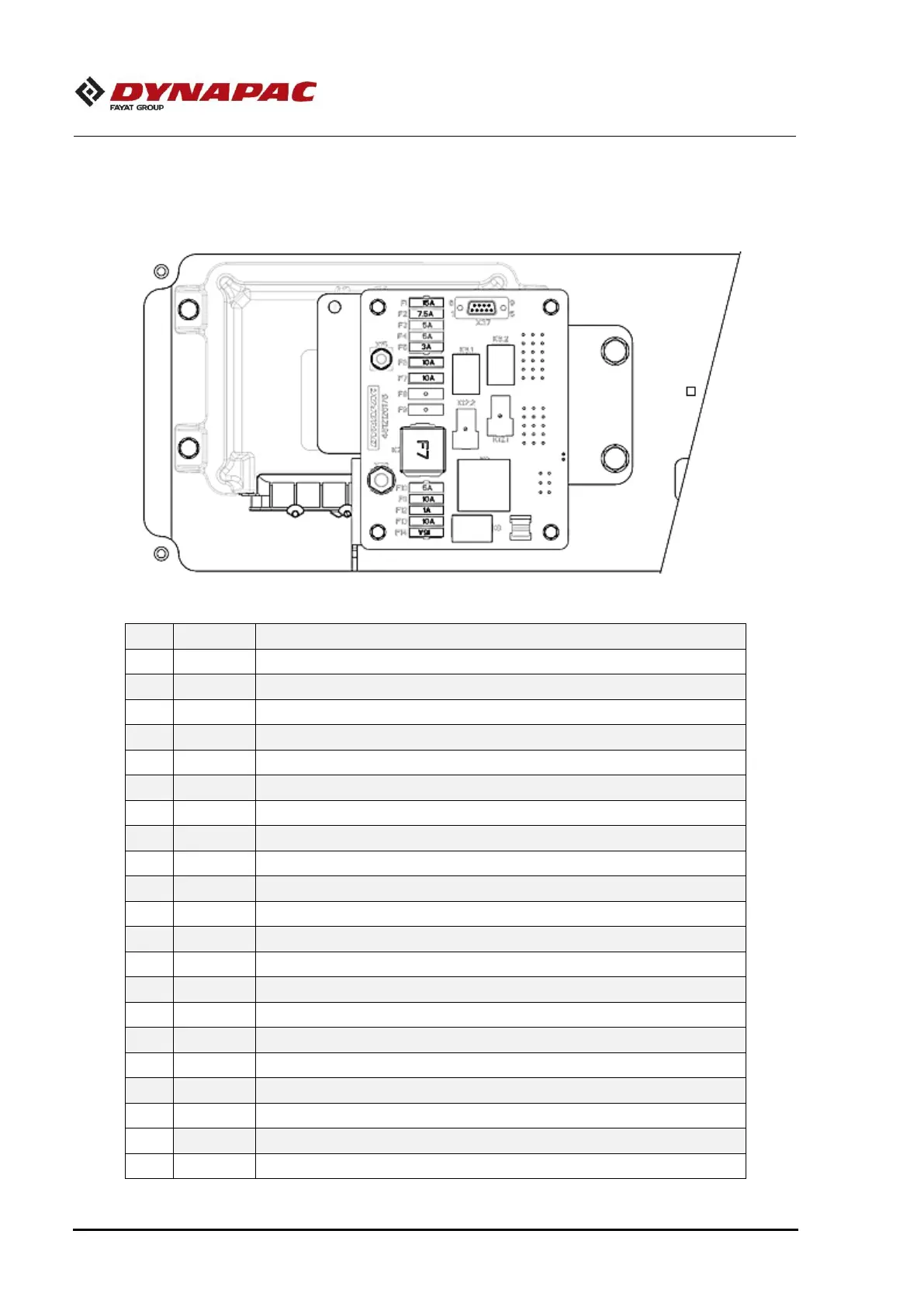

Fig. Relays and fuse board
