TST Expanded Startup WU
FEIG ELECTRONIC GmbH Page 4 of 18 WU_erweiterte_ Inbetriebnahme4_GB.doc
3 Optimizing door operation
The switch off position for Door Close and Door Open will adjusted with the mechanical limit switches or, by
using electronic limit switches, by parameter.
With electronic limit switches is a automatic correction of the limit switch bands possible by activating
P.216 = 2.
3.1 Opening the door
End switch close
End switch open
P.230
OPENING

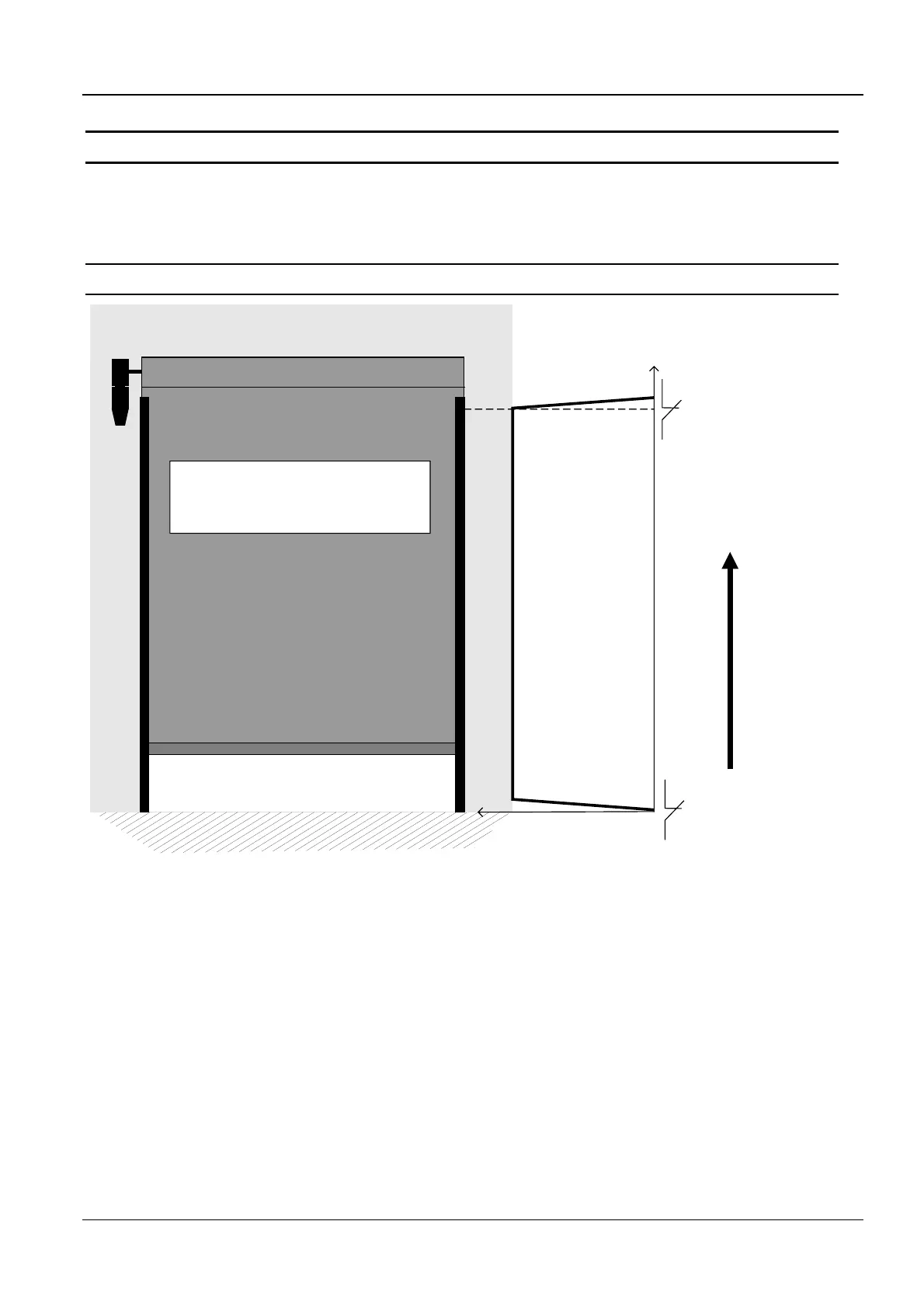

Fig. 1: Opening the door
The door movement starts with an open command, so that the OPEN-contactor will be energized.
The door moves as long as the limit switch or the limit switch band for the open position has reached.
At this point the OPEN-contactor will be deactivated.
