3.2 Closing the door
End switch close
End switch open
P.230
CLOSING

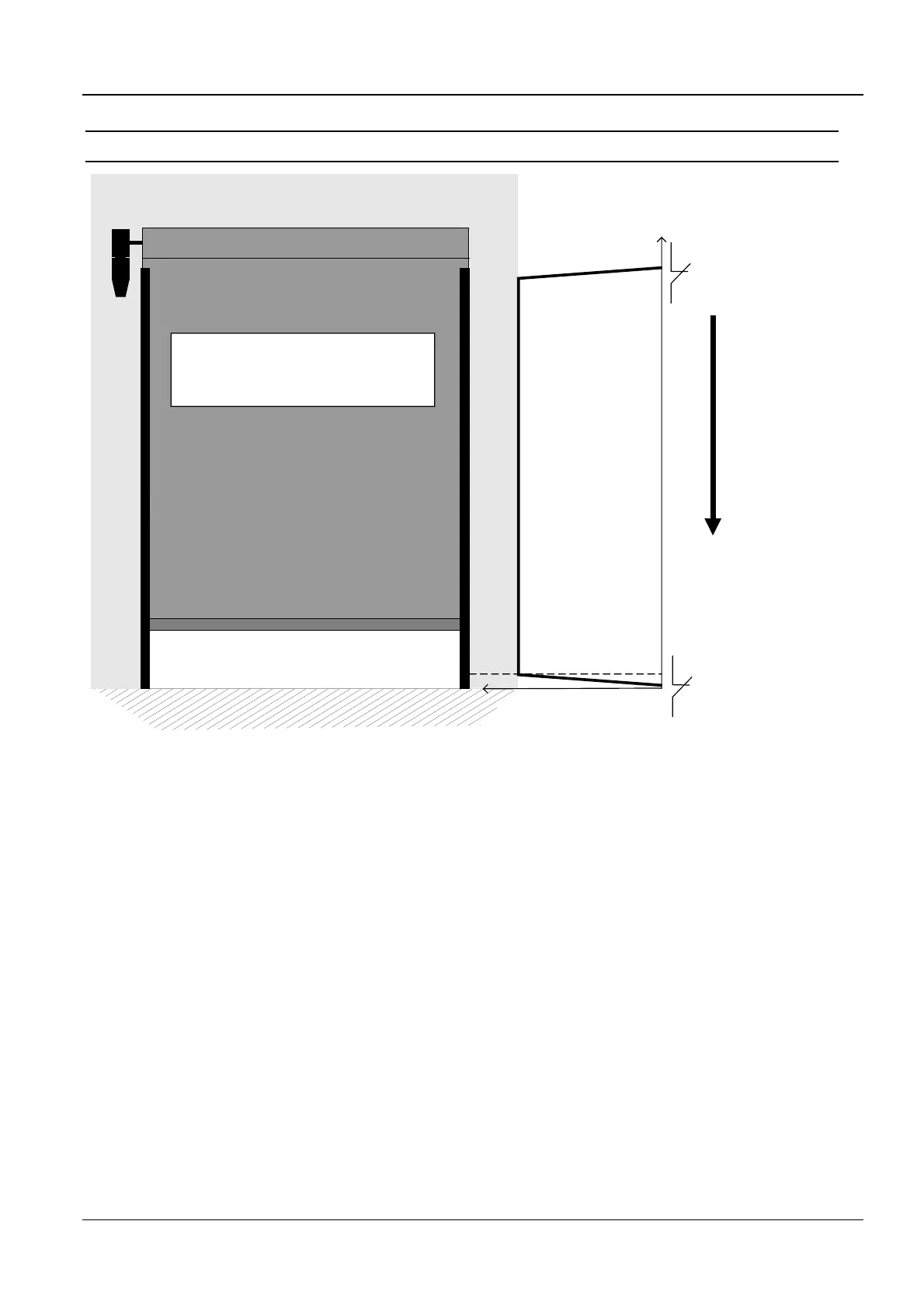

Fig. 2: Closing the door
The door movement starts with an close command or after the auto close time has run out, so that the
CLOSE-contactor will be energized.
The door moves as long as the limit switch or the limit switch band for the close position has reached.
At this point the CLOSE-contactor will be deactivated.
If an open command is given during closing of the door the door will reverse and open.
