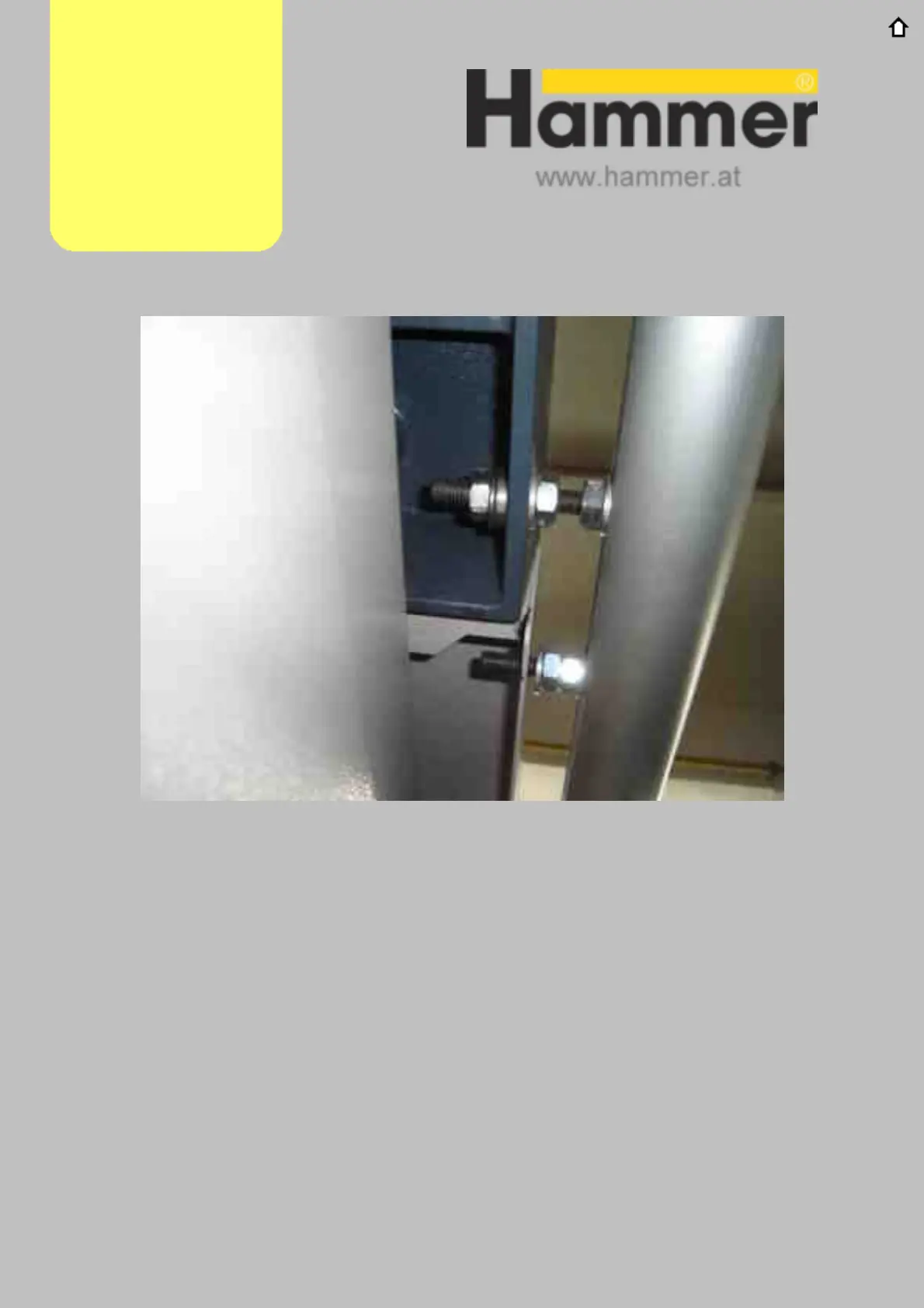

(correct arrangement of screws)
Also make sure that the spherical washers sit on the inside of the cast iron table,
where it is not machined. The machined side only requires a washer and nut.
Tighten the two screws that attach the guide bar to the cast iron table first, checking
the alignment as described in the adjustment and tolerancing information, then work
outwards along the guide bar to secure it across it’s entire length.
Continued…
