Rip Fence Guide Bar
Once the tables are in place and adjusted correctly, the rip fence guide bar can be
installed. Start by lining up the screws
on the guide bar with holes provided in the
chassis and the extension tables. Make sure that the arrangement of the screws,
nuts and washers is the same as that displayed in the exploded assembly diagram.
Also adhere to the height information given in the diagram for the rip fence (from the
cast iron table).
The procedure is the same for round (800mm rip capacity) or rectangular (700mm rip
capacity) section.

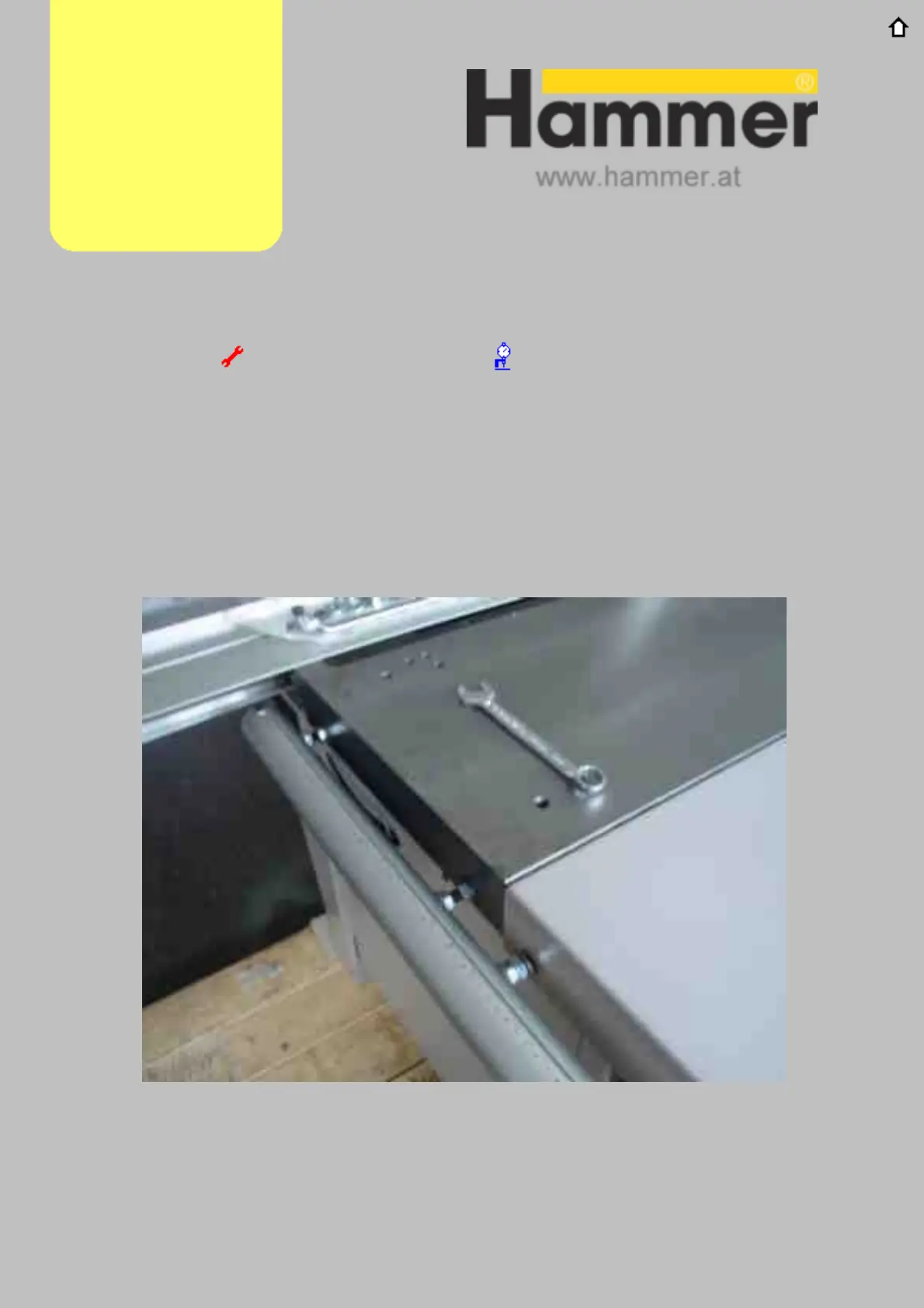

(showing round guide bar)
Adju s t m e n t Lin k Alig nm e nt Lin k
Continued…
11.Assembly
