:Shortest sliding tables
Start by loosening the lower and middle nuts that attach the middle of the sliding
table to the chassis. Only the outer 4 points should remain tight. Then place a straight

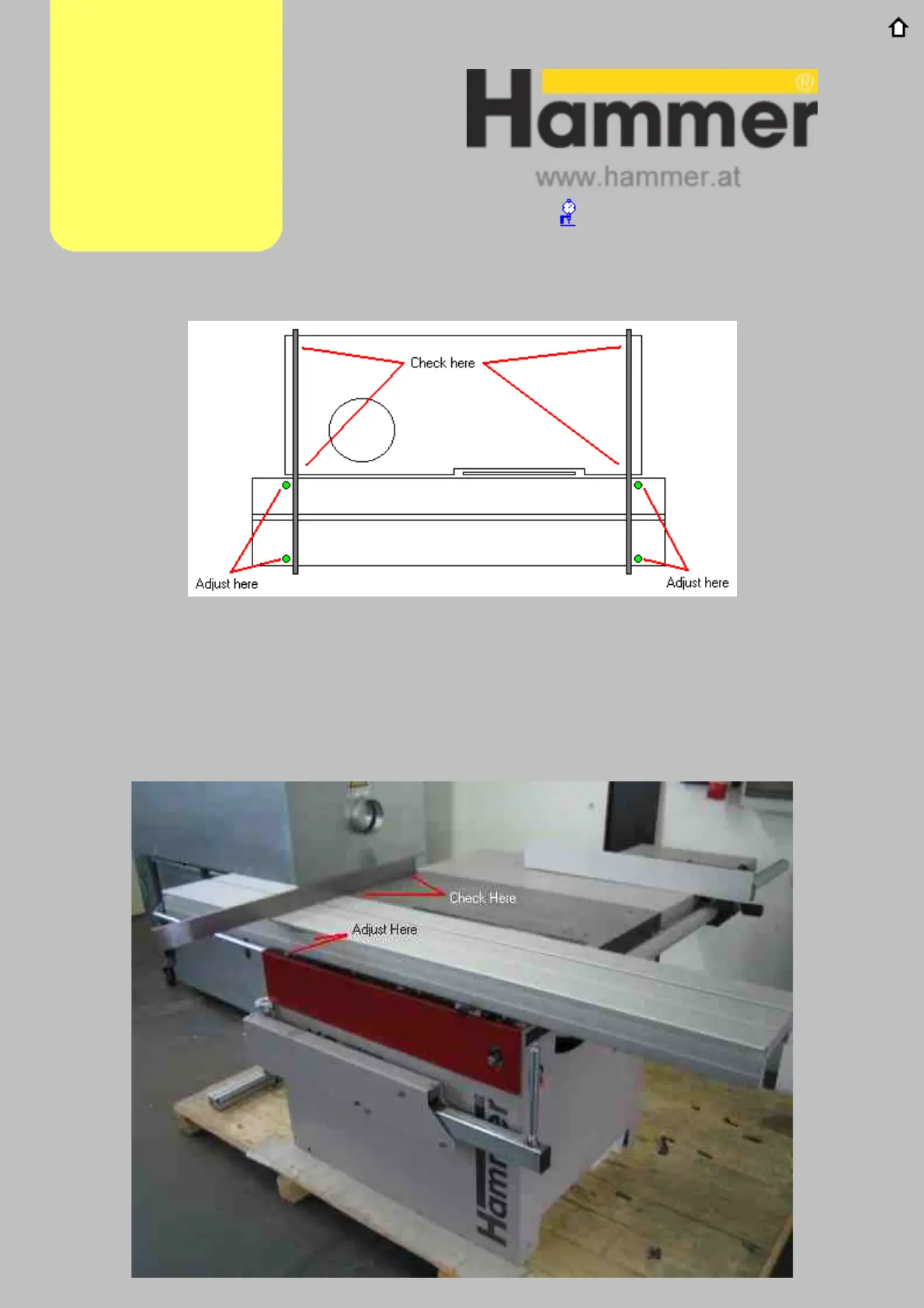

edge along the tables, as shown in figure SS02.2. Check the alignment of the sliding
table here with the specified tolerances. Make any adjustments with the two fixing
points closest (shown in figure SS02.2)
Figure SS02.2 Step One
Adjustments
Alig nm e nt Lin k
SS02 continued
Continued…
