To make adjustments to the position of the crosscut fence, the stop in figure SS05.2
must be moved in the appropriate direction. Start by making no more of an
adjustment than a quarter of a revolution to the nuts on either side of the stop. After
tightening, make sure that the stop can still be turned up
and down but also so that
there is no play in the stop.

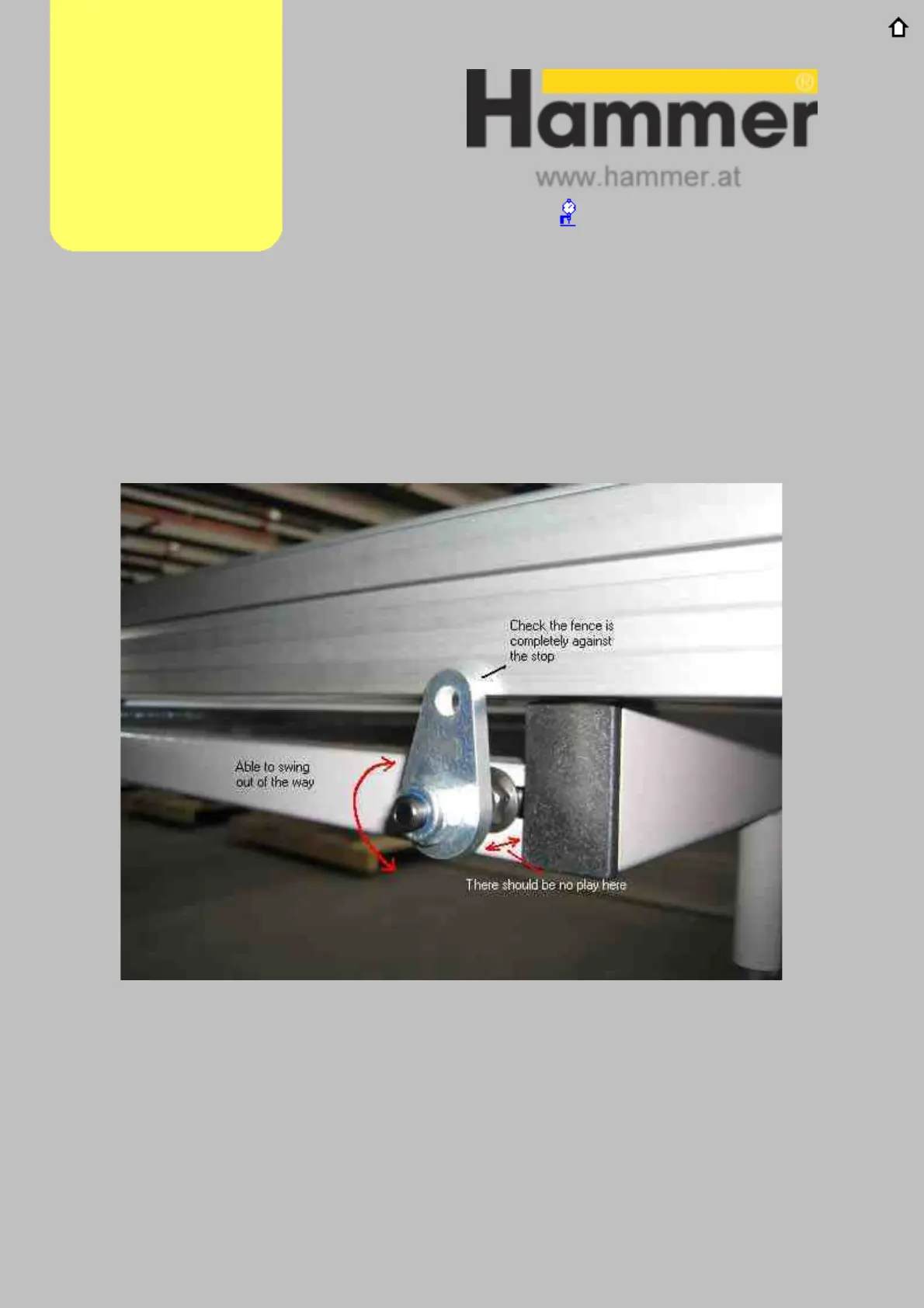

Figure SS05.2 Crosscut fence 90° adjustment
Adjustments
Alig nm e nt Lin k
SS05 continued
