You will need a 1000mm straight edge and a feeler ga
uge for this. All
extension tables should be aligned within the specified tolerance. Figure SR01.1.1

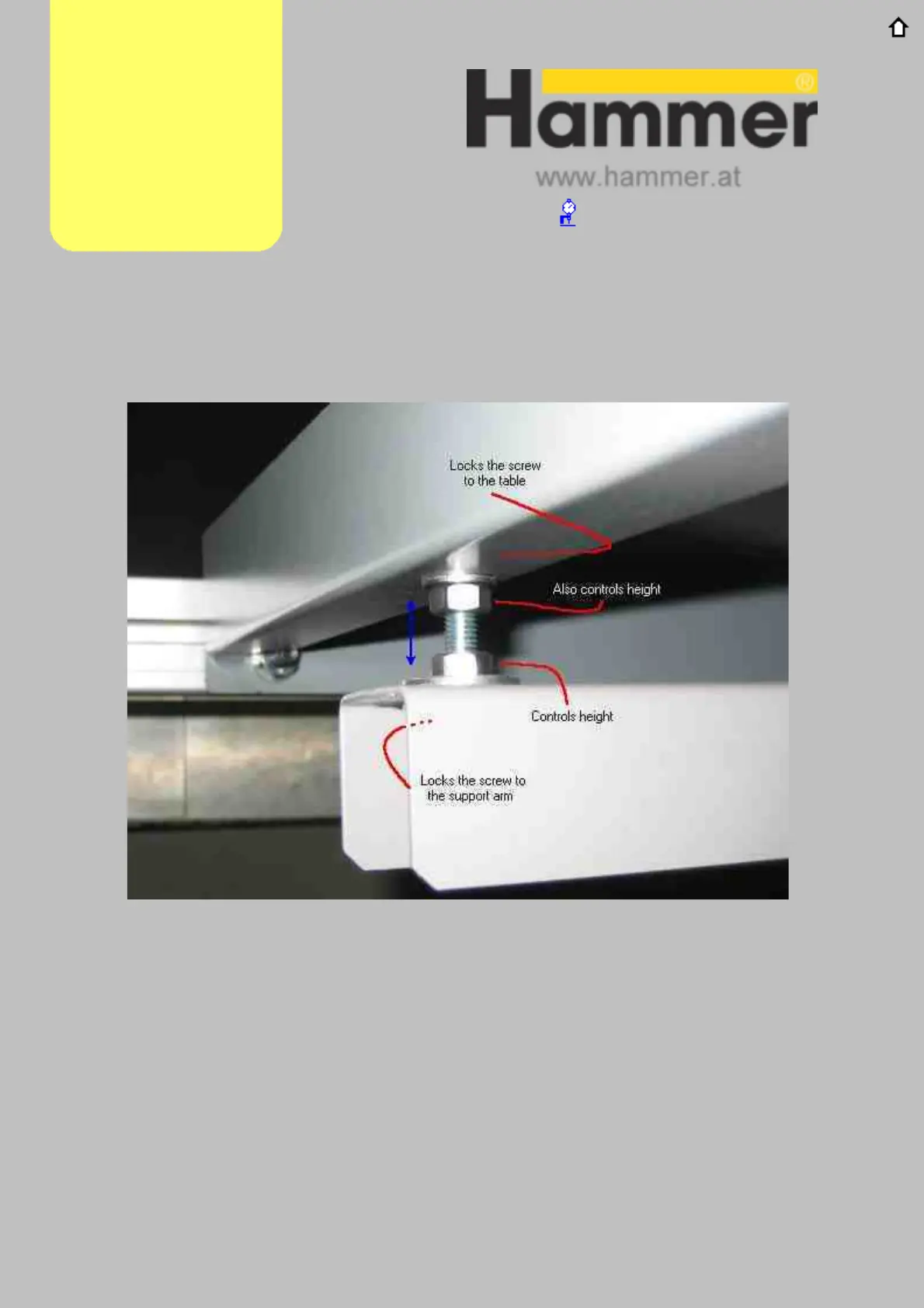

show the functions of the main supporting screws and nuts.
Figure SR01.1.1
The additionsl screws that support the table obviously do not attach to the table, but
provide support under the table to take-up any out-of-tolerance gaps. They are
shown in figure SR01.1.2.
Adjustments
Alig nm e nt Lin k
Continued…
SR01.1 Rip Capacity Extension Tables
