All extension tables should be aligned to the cast iron table, using a straight edge
and a feeler guage. Check the alignment across the whole of the table using a
straight edge and a feeler guage to ascertain the difference in height between the
two.

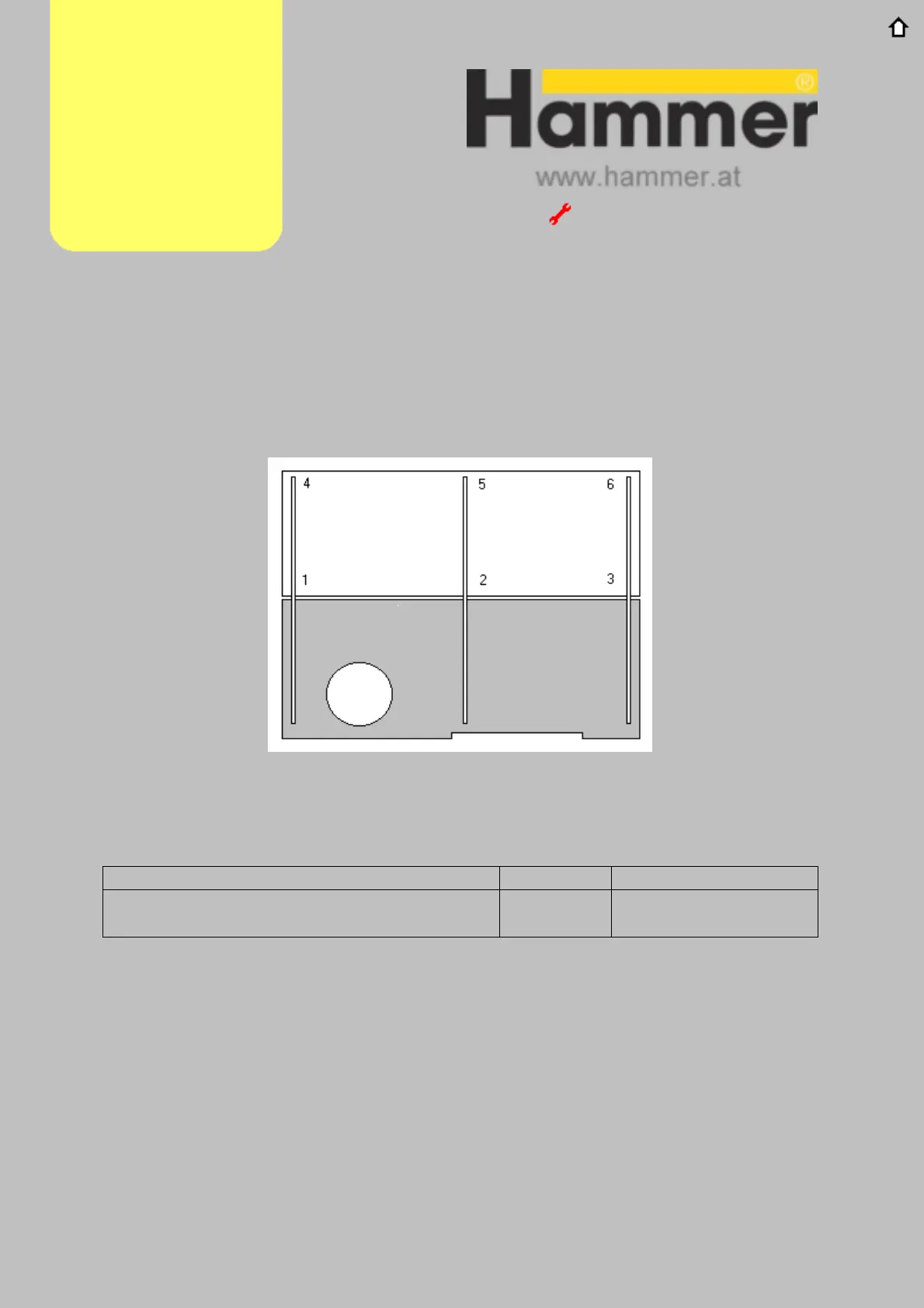

For the rip fence extension table, make checks at the points indicated above with a
straight edge and feeler guage.
Test Point Unit type Tolerance
Parallel to cast iron table Metric 0.0mm to 0.40mm
(Extension table below cast iron) Imperial 0.000” to 0.016”
Alignments
SR01.1 Rip Capacity Extension Tables
