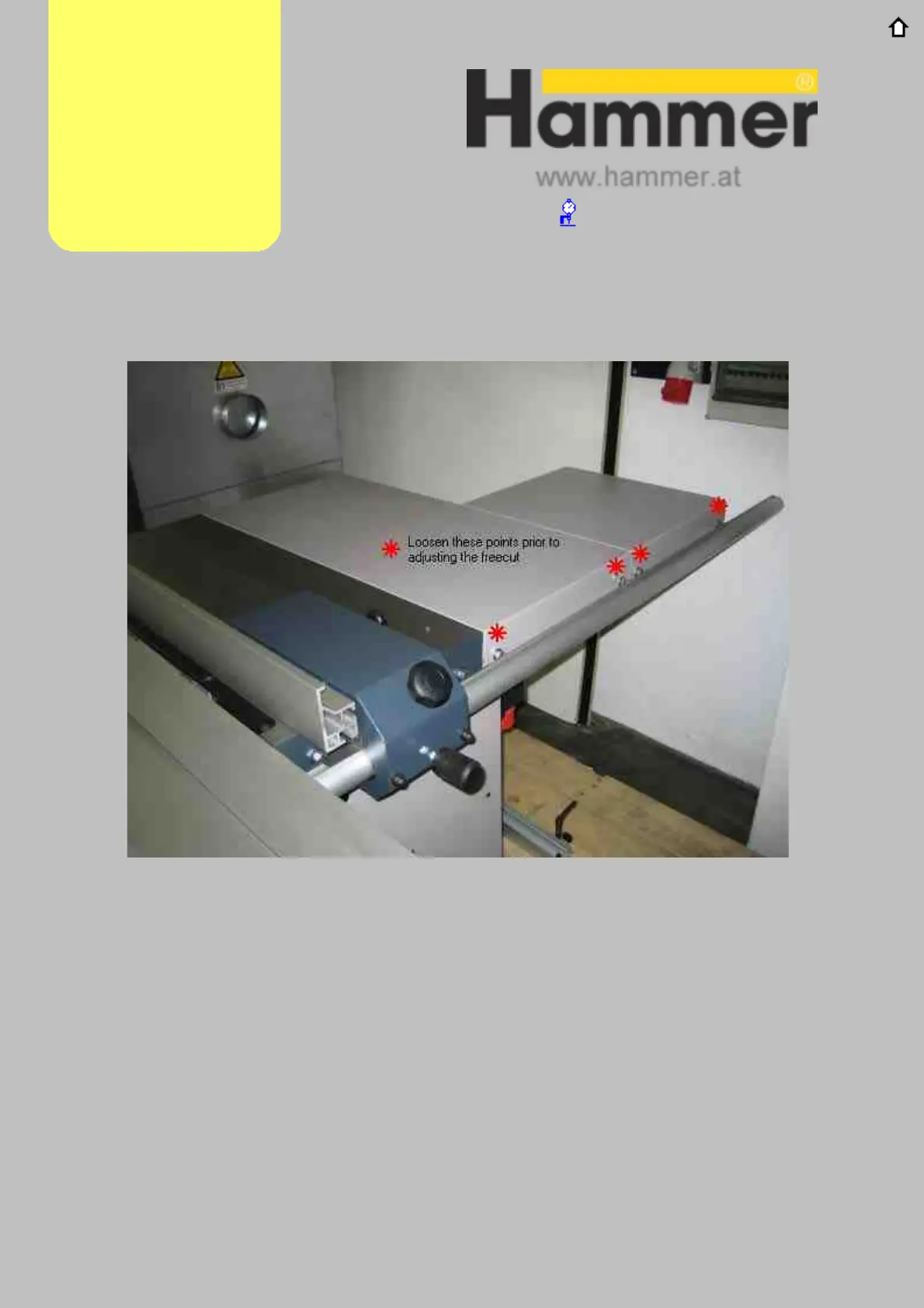

Figure SR04.4 Rip fence bar securing points
So far the freecut has only been checked across the rip fence bar per the width of the
cast iron table. The next step is to check the free cut across the extension tables.
Figure SR04.5 illustrates the two positions you would need to check and also shows
how with two boards (both rip-cut off the rip fence) the check can be made in the
same way as before. This clearly requires that both of the boards have near-perfect
parallel edges, so they must be ripped with great care in order for this check to be
accurate.
Adjustments
Alig nm e nt Lin k
Continued…
SR04 continued
+ SR05 continued
