Fema M60-C1 - Full configuration menu

FEMA ELECTRÓNICA . Series M . M60-C1
16
Select with key LE
Decimal point

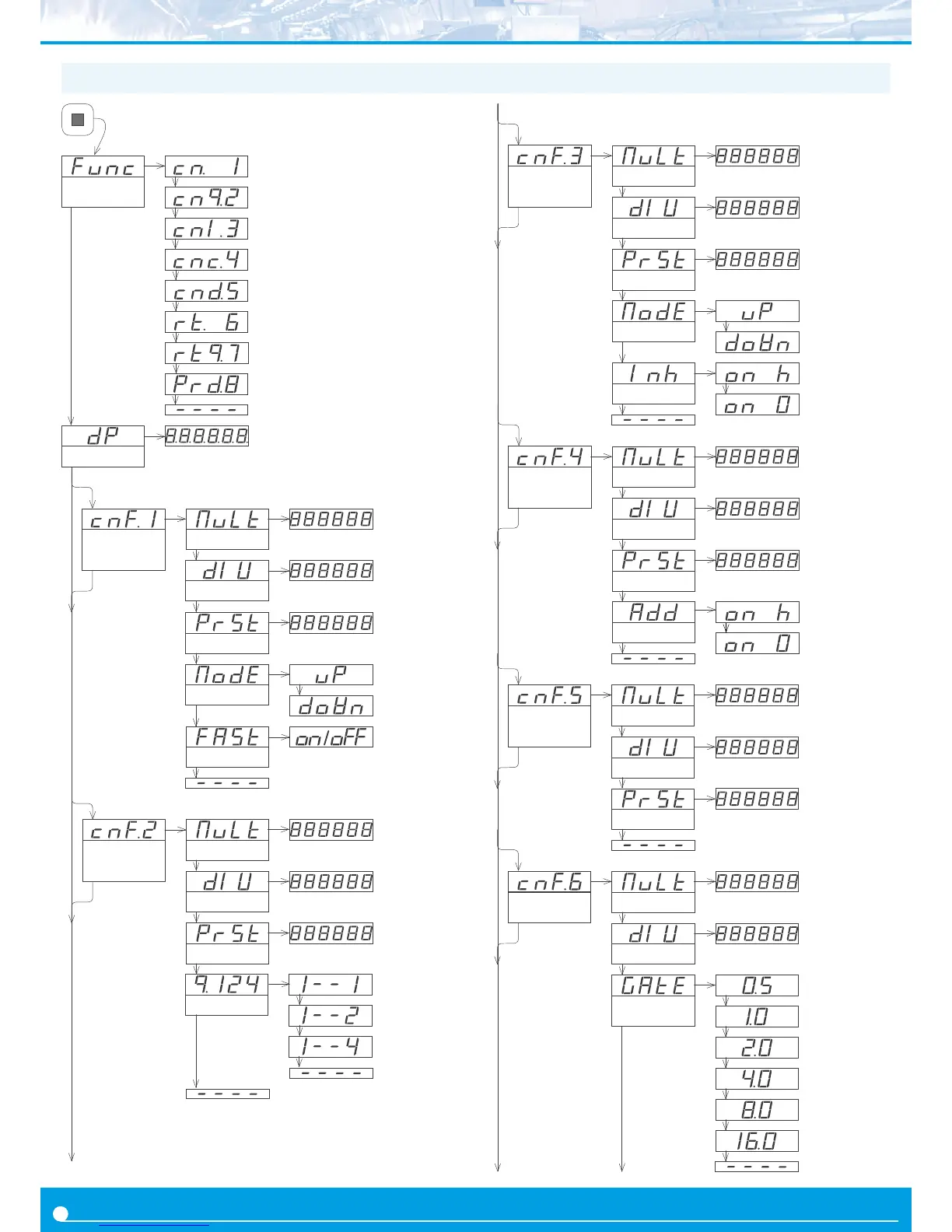

Press ‘SQ’ (<) for 1 second to access the ‘Conguraon menu’. See
secon
1.19 for a descripon of each menu entry.
Funcon
mode
Mulplier
1 to 999999
Divider
1 to 999999
Conguraon
counter
Mulplier
Divider
Preset
Preset value
-199999 to 999999
Mode
Up
Down
‘FAST’ mode
Conf. counter
quadrature
Mulplier
1 to 999999
Divider
1 to 999999
Mulplier
Divider
Preset
Preset value
-199999 to 999999
Edges
1 imp. per cycle
2 imp. per cycle
4 imp. per cycle
Mulplier
1 to 999999
Divider
1 to 999999
Conf. counter
+ inhibion
Mulplier
Divider
Preset
Preset value
-199999 to 999999
Mode
Up
Down
Inhibion
Inhibits if chan-
nel B is high
Inhibits if chan-
nel B is 0 Vdc
Mulplier
1 to 999999
Divider
1 to 999999
Conguraon
counter +
control
add / substract
Mulplier
Divider
Preset
Preset value
-199999 to 999999
Control A/S
Adds if channel
B is high
Adds if channel
B is 0 Vdc
Mulplier
1 to 999999
Divider
1 to 999999
Conguraon
counter
dierenal
Mulplier
Divider
Preset
Preset value
-1999 to 999999
Mulplier
1 to 999999
Divider
1 to 999999
Seconds
Conf. ratemeter
Mulplier
Divider
Time window
1.20 Full conguraon menu
Counter
Counter quadrature
Counter + inhibion
Counter + control add / substract
Counter dierenal
Ratemeter
Ratemeter quadrature
Periodmeter
