INTRODUCTION
The 5 WIRE VIDEO ENTRY SYSTEM KIT is easy to install, advanced professional
equipment with no call wires OR COAXIAL CABLE.
CAT 5 UTP 4 pair cable can be used, (up to a maximum distance of 100 metres), as
indicated below :
- 1 pair to connect «V+» and «V-», (video signal).
- 1 pair for «+», (positive feed).
- 1 pair for «-», (negative feed).
- 1 pair for «L», (audio/data line).
BASIC INSTALLATION

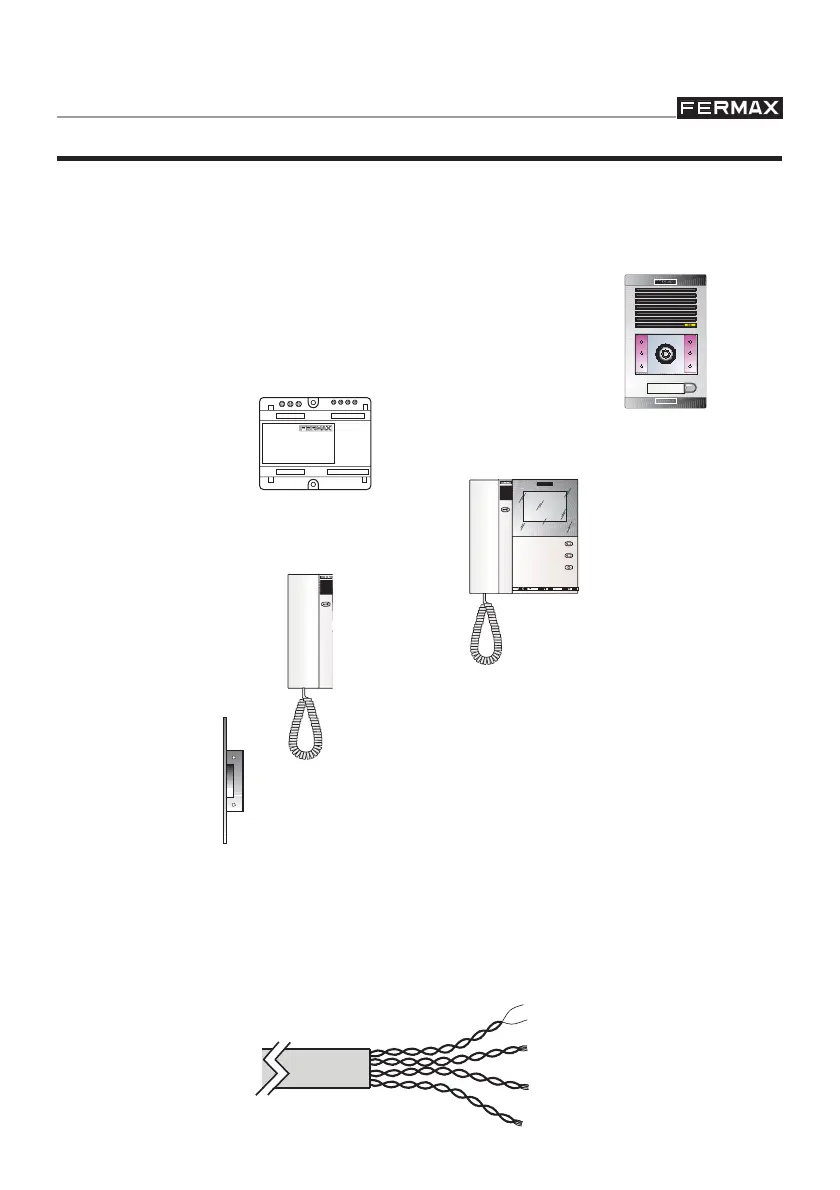

COMPOSITION
The kit includes:
- a Video Entry Outdoor Panel with flush and surface
mounting box.
- a Monitor with installation connector
- a Door Release
HIGH PERFORMANCE
MULTIPLEXED DIGITAL SYSTEM
STOP
1
2
HIGH RESOLUTION
FLAT MONITOR
- a Power Supply
-+-+
FEEDER
- a Telephone
