ferrotec CARRERA - 3.3 Overview of electrical connections

Version 1.3_15 EN
16
High Voltage Power Supply
Type: CARRERA
3.3 Overview of electrical connections

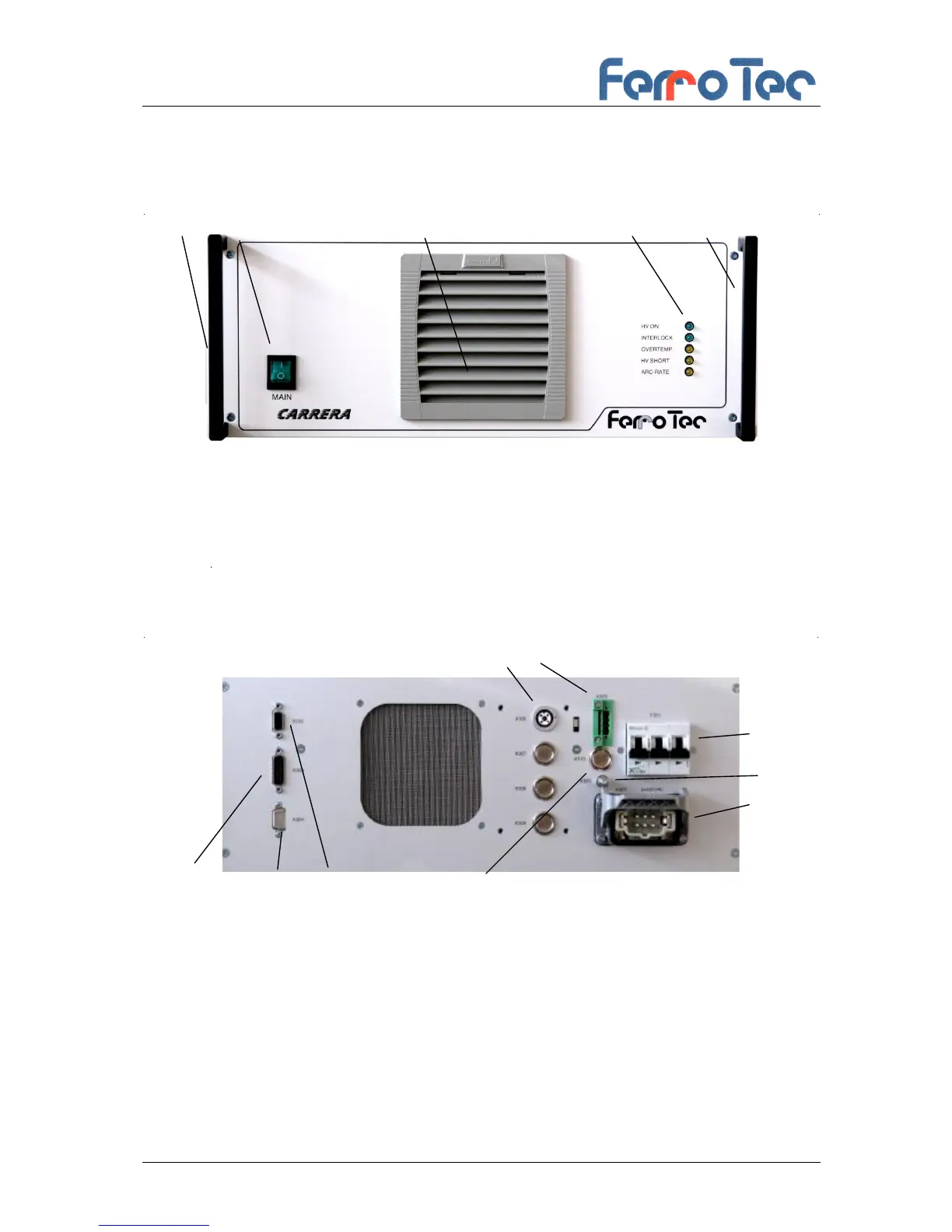

Fig. 2 Electrical connections of the high voltage power supply ( front side)
Front side of the high voltage power supply:
1 Transportation handle
2 ON/OFF switch
3 Air filter inlet
4 LED-Display
13
Fig. 3 Electrical connections of the high voltage power supply ( back side)
Back side of the high voltage power supply:
5 High voltage output
6 Interlock connection
7 Digital interface (connection to Control unit)
8 Analoginterface (connection to Control unit)
9 Fuses
10 Grounding
1 2 3 4 1
5 6
7 12 8
9
10
11
