High Voltage Power Supply
Type: CARRERA
6 Functional description

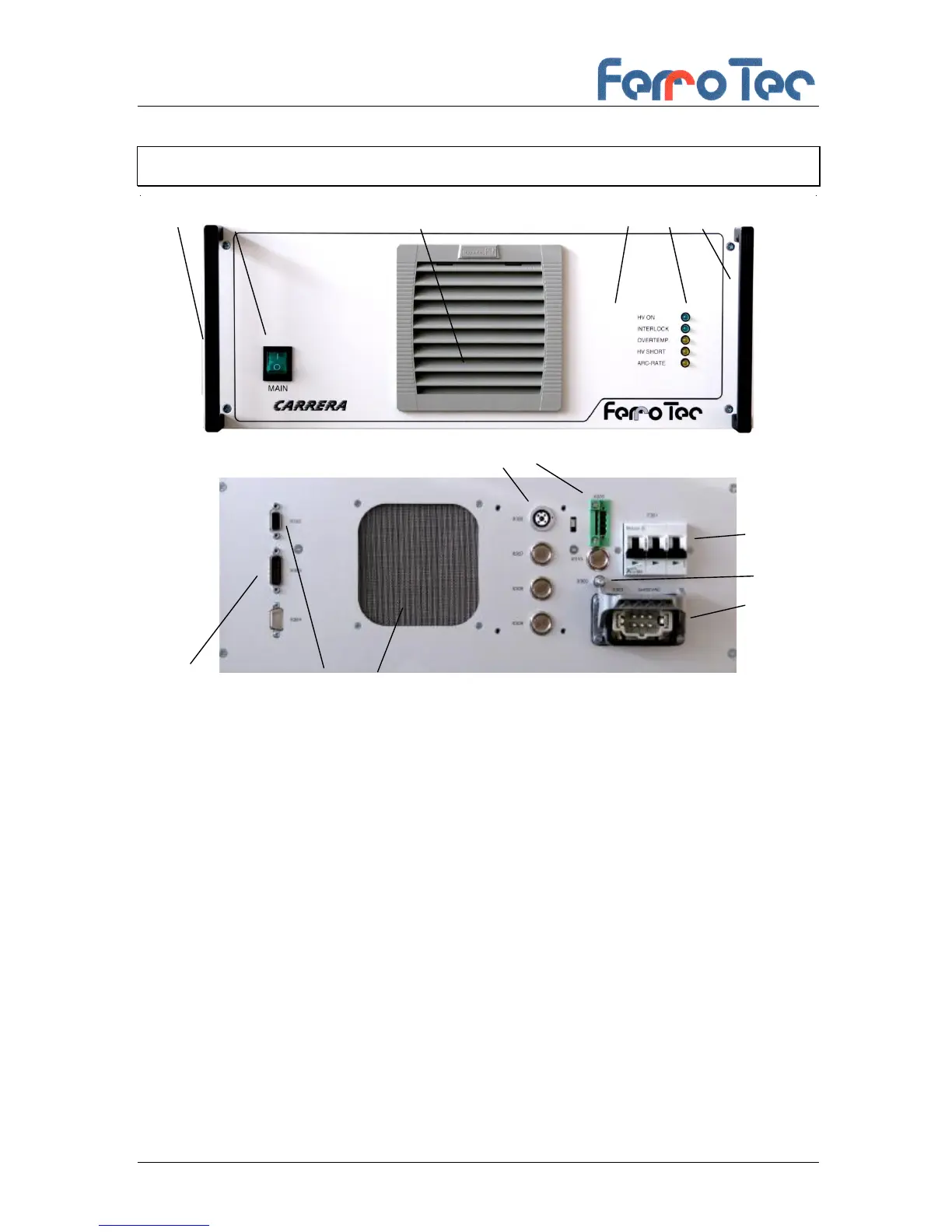

Fig. 10 Overview high voltage power supply
1 Transportation handles
2 ON / OFF switch
3 Air inlet with the filter mat (replaceable)
4 Housing
5 LED-Indicators
6 Analog interface (connection to the control unit)
7 Digital interface (connection to the control unit)
8 Air outlet
9 Earthing
10 Mains supply line
11 Fuses
12 Interlock connector
13 High voltage output
1 2 3 4 5 1
13 12
7 6 8
9
9
10
