High Voltage Power Supply
Type: CARRERA
Analoger Interface-Stecker X302: (9-polige Sub.-D Buchse)
Analog Input:
PIN 1
High voltage-Setpoint
(+)
(0...10 V DC)
PIN 2
High voltage-Setpoint
(-)
Analog Output:
PIN 5
High voltage-actual value
(+)
(0...10 V DC)
PIN 6
High voltage-actual value
(-)
PIN 7
Current-actual value
(+)
PIN 8
Current-actual value
(-)
Interlock connector X305:
(4-pole serial connector, see Fig. 5-4)
Interlock-loop
PIN 1
Interlock
(+)
(24 V AC)
PIN 2
Interlock
(-)
PIN 3
Main contactor feedback
(+)
PIN 4
Main contactor feedback
(-)

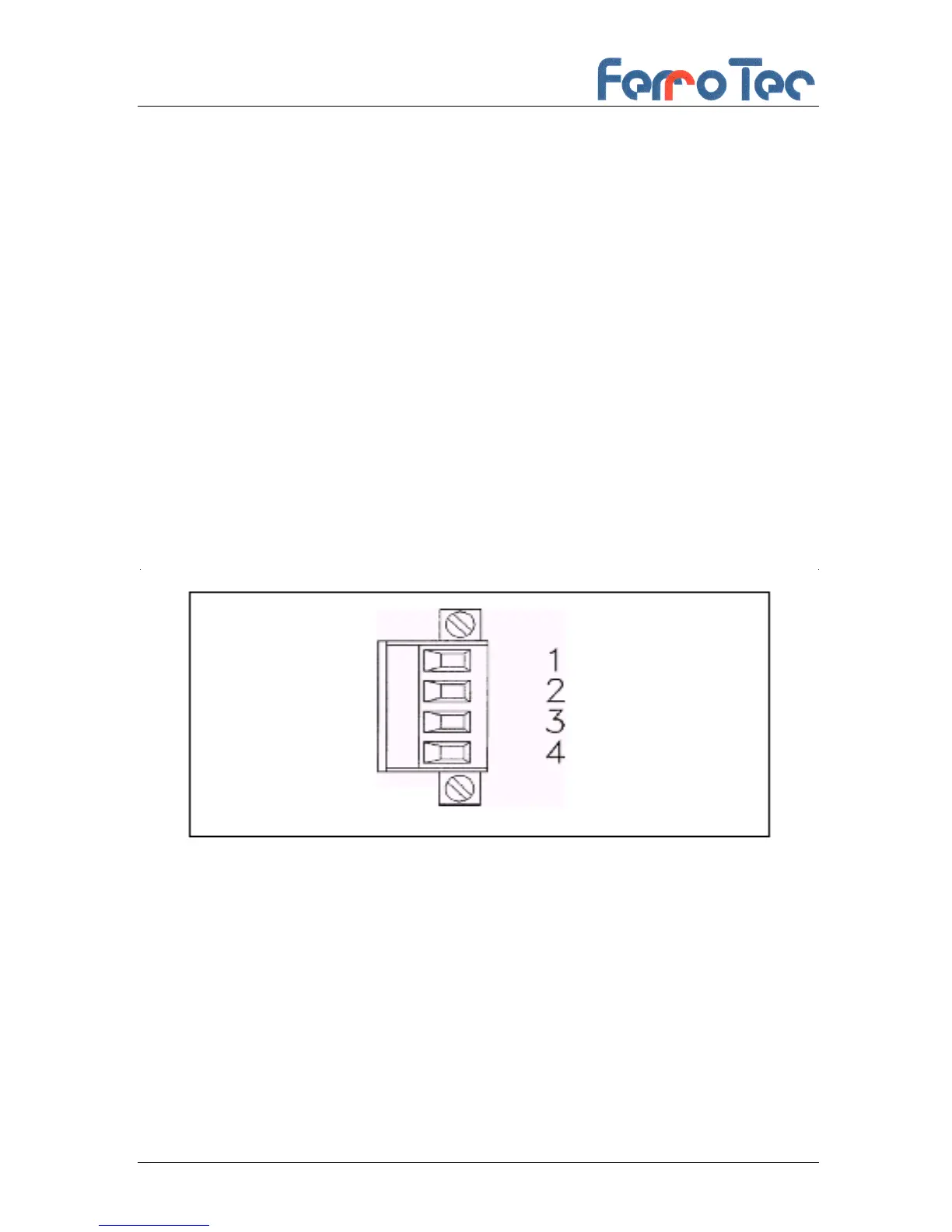

Fig. 8 Interlock connector
