Main supply line
The mains supply line is used to connect the high-voltage power
supply unit to the mains.
1. Connect the mains supply line with the Harting plug to the
X301 connector.
DANGER
First make sure whether the mains supply line is without
voltage.
2. Connect the mains supply line with the Harting plug to the
X301 connector.
400 Volt Version
N L3(R) L2(S) L1(T) PE(GND)
208 Volt Version
L1(R) L2(S) L3(T) PE(GND)

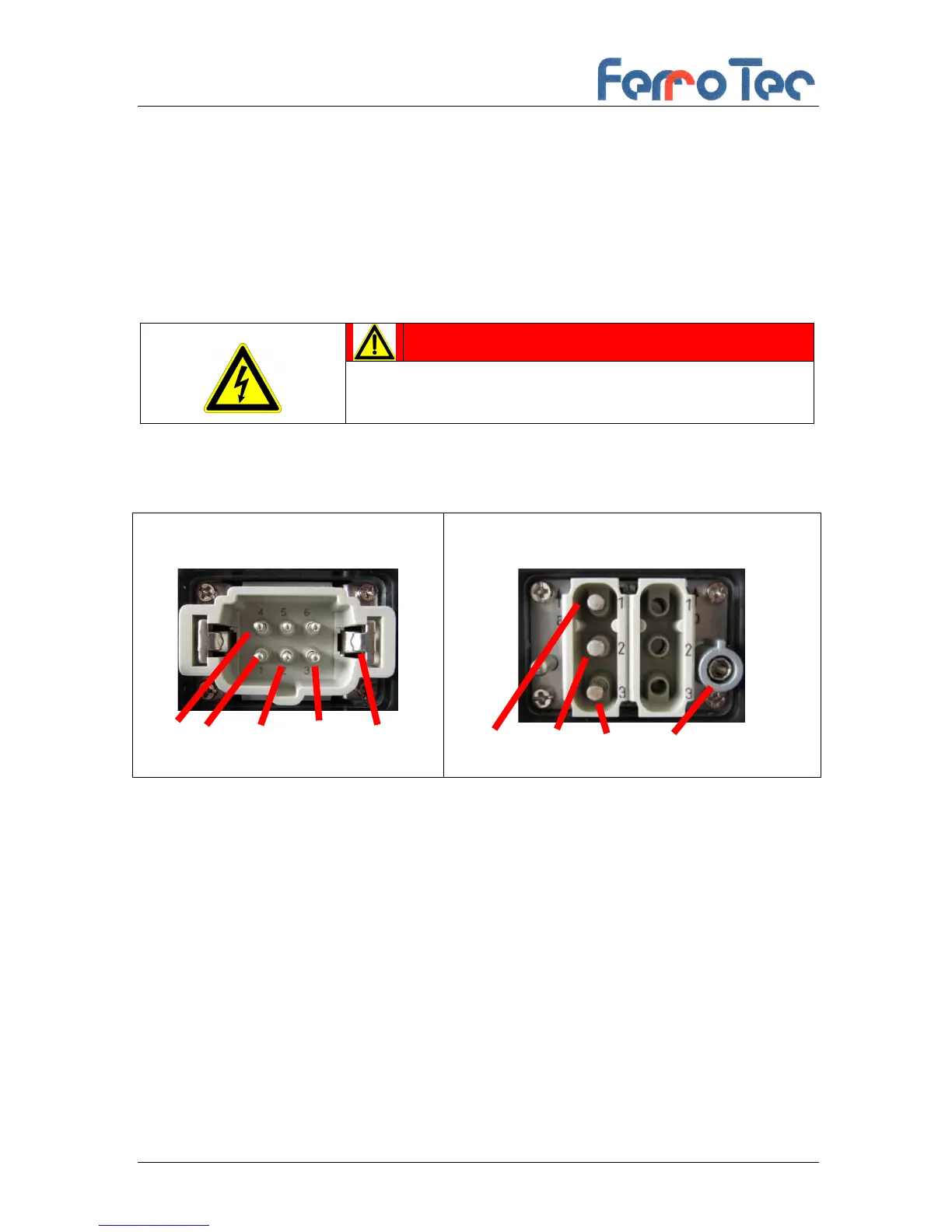

Fig. 9 Harting plug, connector assignment of the power supply cable
