8 Setup
8.1 The Filtration Learning System
The Filtration Learning System consists of the MPS PA Filtration station and the most important control
components for teaching learning content.

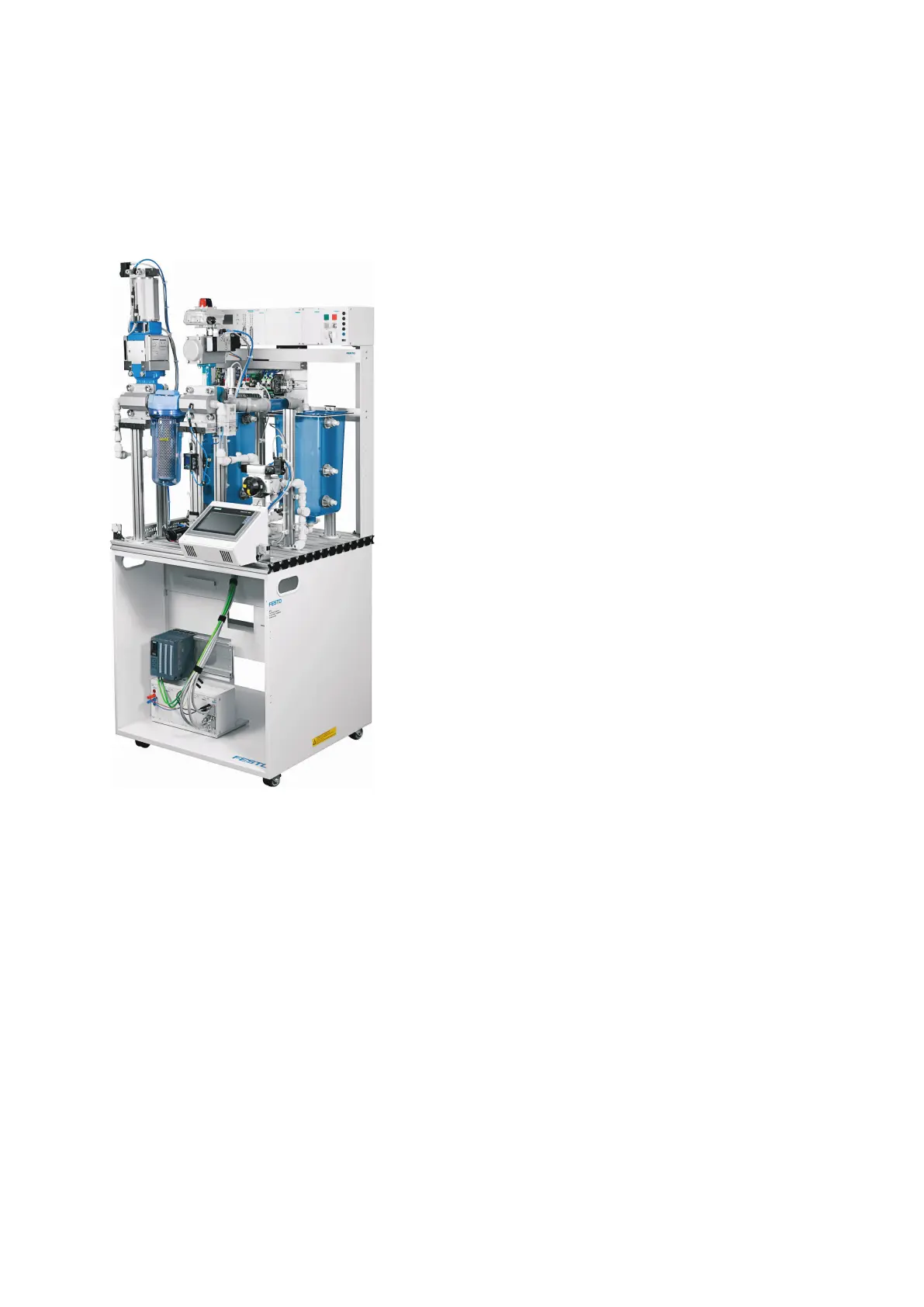

Figure 1: Front view Filtration Learning System
The Filtration Learning System consists of the following main components:
• MPS PA Filtration station with 19″ frame incl. 24 V DC power supply, control panel, and communication
panels 1x I/O data cable with SysLink plugs to IEEE 488, crossed (order no. 167106) and accessories
• Trolley (order no. 541139)
• EasyPort USB 19″ (order no. 8021637) incl. connecting cable (length 1 m)
• FluidLab-PA closed loop (order no. 544304)
• USB device server
• EduTrainer Universal MPS PA: A4 rack with SIMATIC S7-1500 (order no. 8065600)
• 1x I/O data cable with SysLink connectors to IEEE 488, crossed (order no. 167106)
• 1x analog cable, parallel (order no. 529141)
• Safety laboratory cable, 3 m (order no. 571817)
• Control console with SIMATIC Touch Panel TP700 (order no. 8079869)
