Filtration Learning System Setup
© Festo Didactic 696684
35
8.12.3 19″ frame
The following components are installed in the 19″ frame of the station:
• Power supply 120 V / 230 V AC with IEC socket in accordance with IEC 60320, type C13
• 19″ power supply 24 V DC, 4 A
• EasyPort 19″ USB
• 19″ control panel with 3 pushbuttons, 1 key switch and 4 LED indicators
• 19″ communication fields with 4 inputs and outputs placed on safety sockets (in combination with the
19″ control panel)

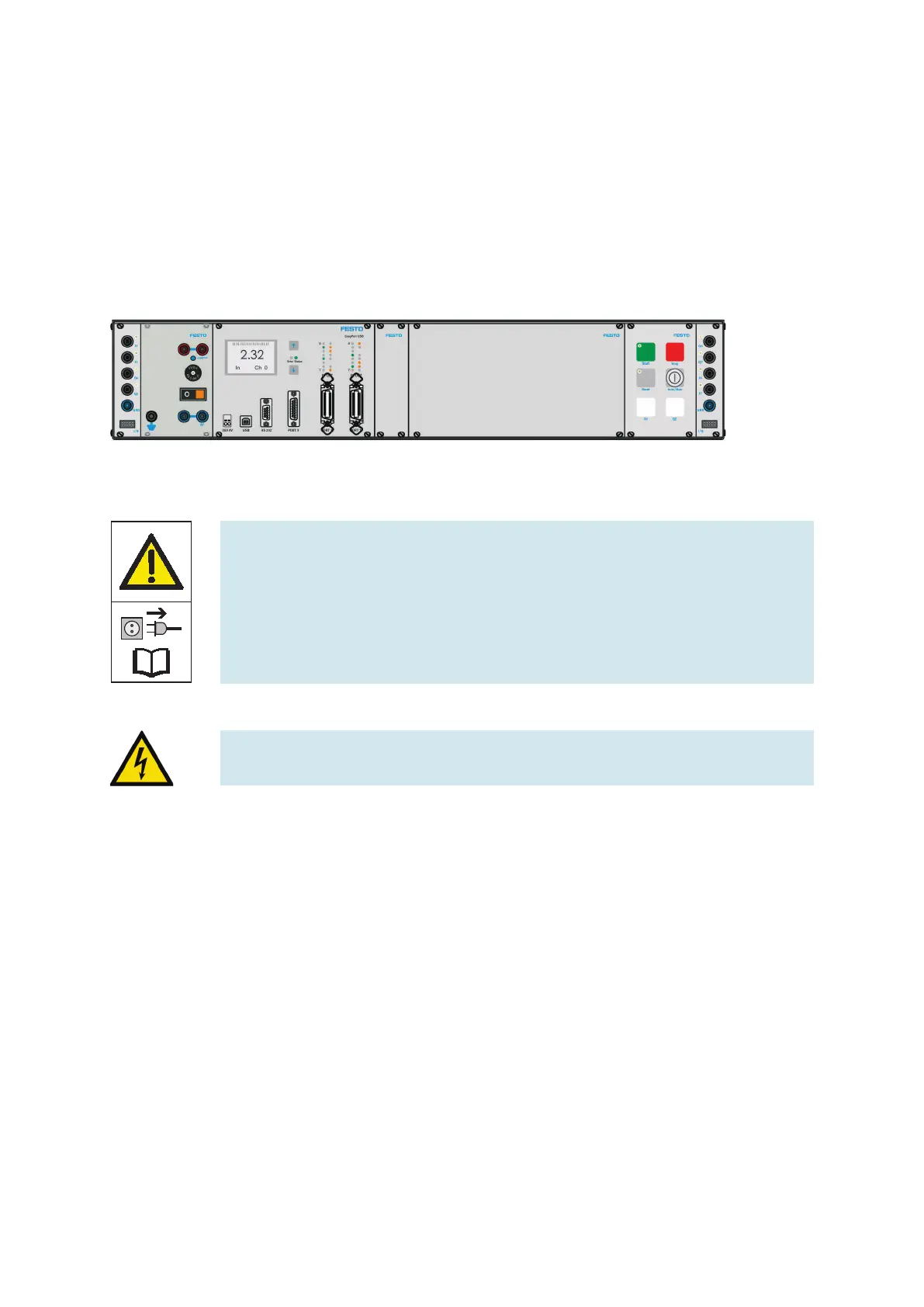

19" frame – Example setup for the Reactor Station
Switch off the device and unplug the connection for power supply before
assembly, repair, maintenance, and cleaning work.
Observe the user documentation, in particular all safety instructions. Non-
observance may result in severe personal injury or damage to property.
There is a risk of electric shock if used improperly!
With the MPS PA 204 system, a 19″ EMERGENCY-STOP panel is added as an option to the 19″ frame of the
Filtration and Reactor stations.
