Commissioning Filtration Learning System
46 © Festo Didactic 696684
• Connect analog I/Os of the EduTrainer (3/C) and analog terminal XD3 (6) of the station
with analog I/O data cable (8) or check the connection.
• Connect the EduTrainer laboratory sockets to the power supply and power supply unit with laboratory
cables (9 - 4 mm safety plug red = + / blue = -) or check the connection.
• Connect your PC or operator unit with a network cable to the PLC controller (not shown) or check the
connection.

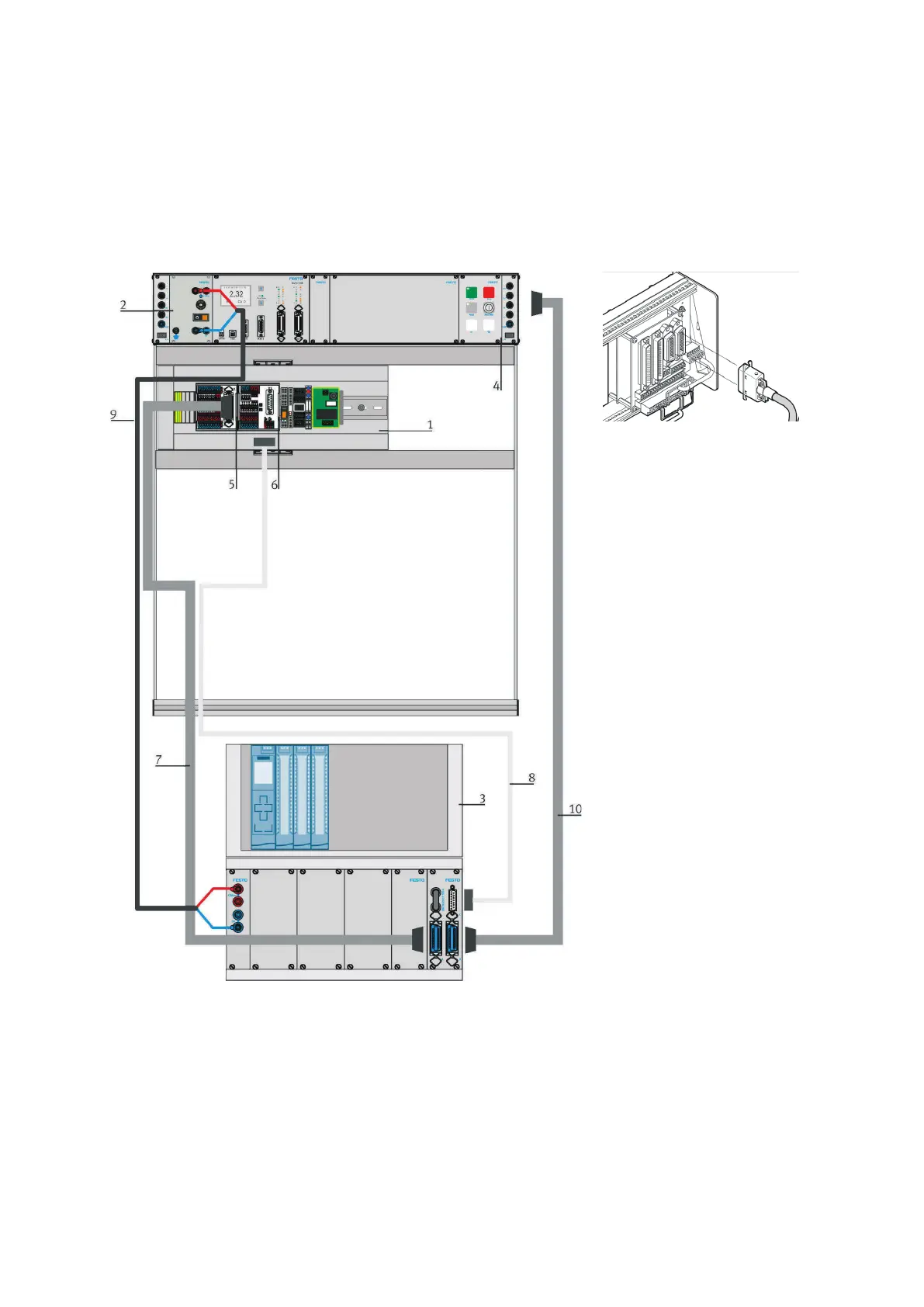

Figure 26: Cable connection MPS
PA Station - EduTrainer Universal without power supply
Legend
1 I/O connection board MPS-PA station
2 Power supply unit 24 V DC, 4.5 A
3 Edutrainer Universal with PLC
4 Control panel
5 I/O terminal SysLink
6 Analog terminal
7 SysLink I/O data cable, parallel (034031)
8 Analog cable, 15-pin, parallel (529141)
9 Laboratory cable with safety laboratory sockets
(red/blue)
10 SysLink I/O data cables, parallel (034031)
