3.6 Operator unit CDPX
The operator unit CDPX is a display for executing and monitoring automation tasks at the field level.
• Note the accompanying user documentation when installing the device.

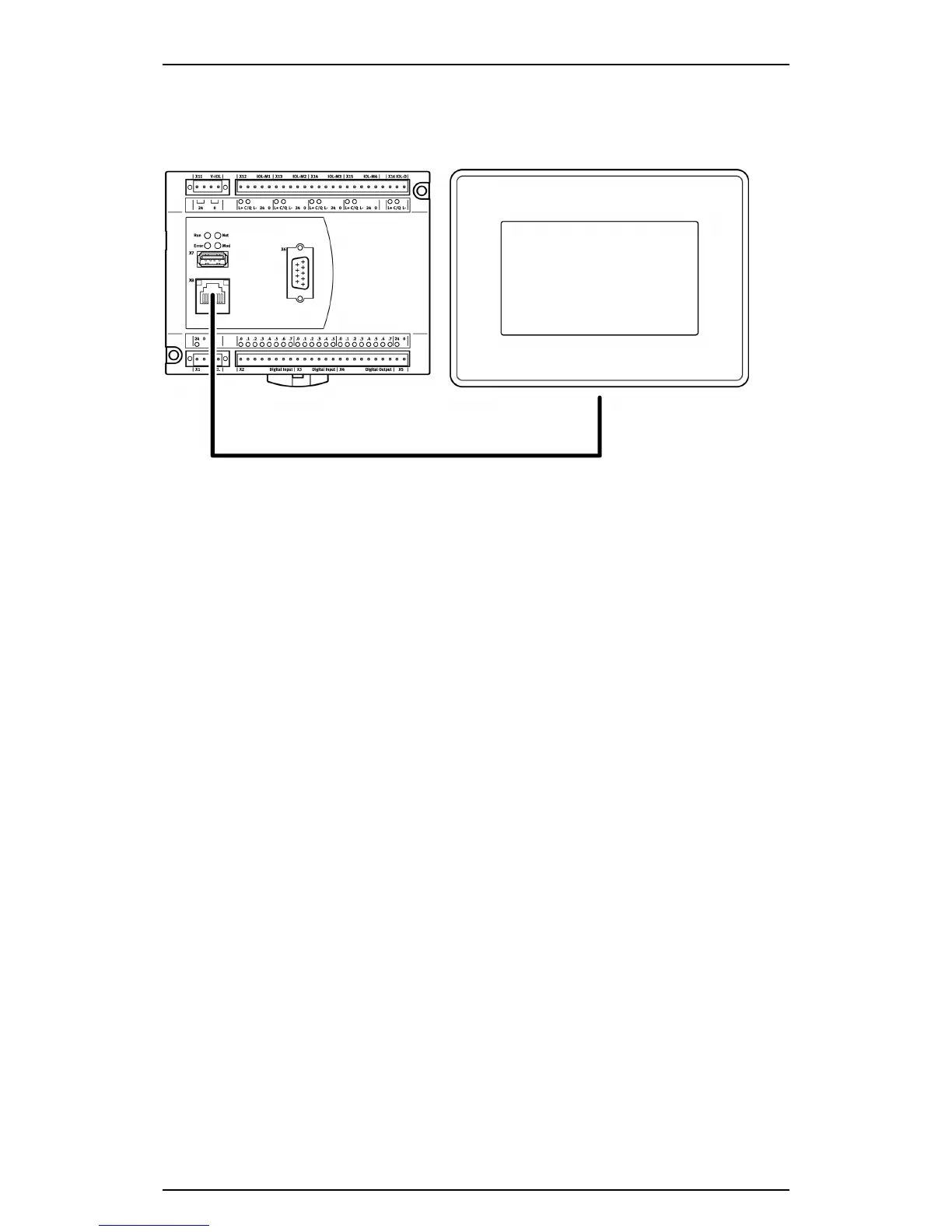

Figure: CECC with operator unit CDPX
• Connect the CDPX to the CECC directly via the Ethernet interface or indirectly via a switch/hub.
• Make sure that the settings for the subnet mask are the same on both devices (e.g. 255.255.0.0).
Further information can be found in the user documentation for the CDPX.
