Festo Controller CECC-S User Manual

Festo Controller CECC
38
1
Upper compare value = 10
6
Signal curve for "Counter value within compare
values"
2
Lower compare value = -10
7
Signal curve for "Counter value outside compare
values"
3
Signal curve for "counter value = lower
compare value"
8
Signal curve for "counter value = lower compare
value
(with pulse lengthening)"
4
Signal curve for "counter value <= lower
compare value"
9
d: Pulse lengthening
5
Signal curve for "counter value >= lower
compare value"

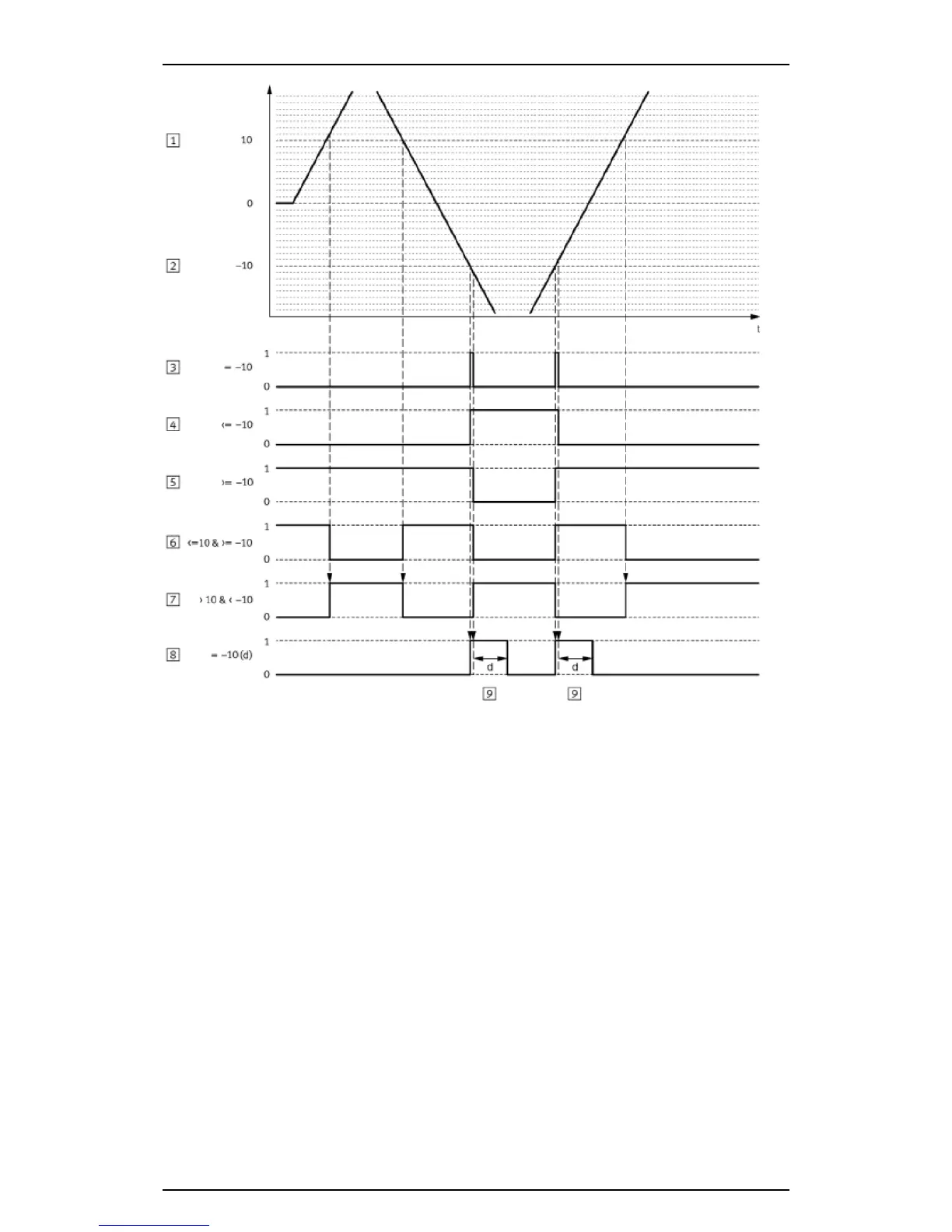

Figure: Digital output as a function of the "Comparator to output" parameter (example)
