Fastening
Hat rail
Housing
M4x12 screw
Washer

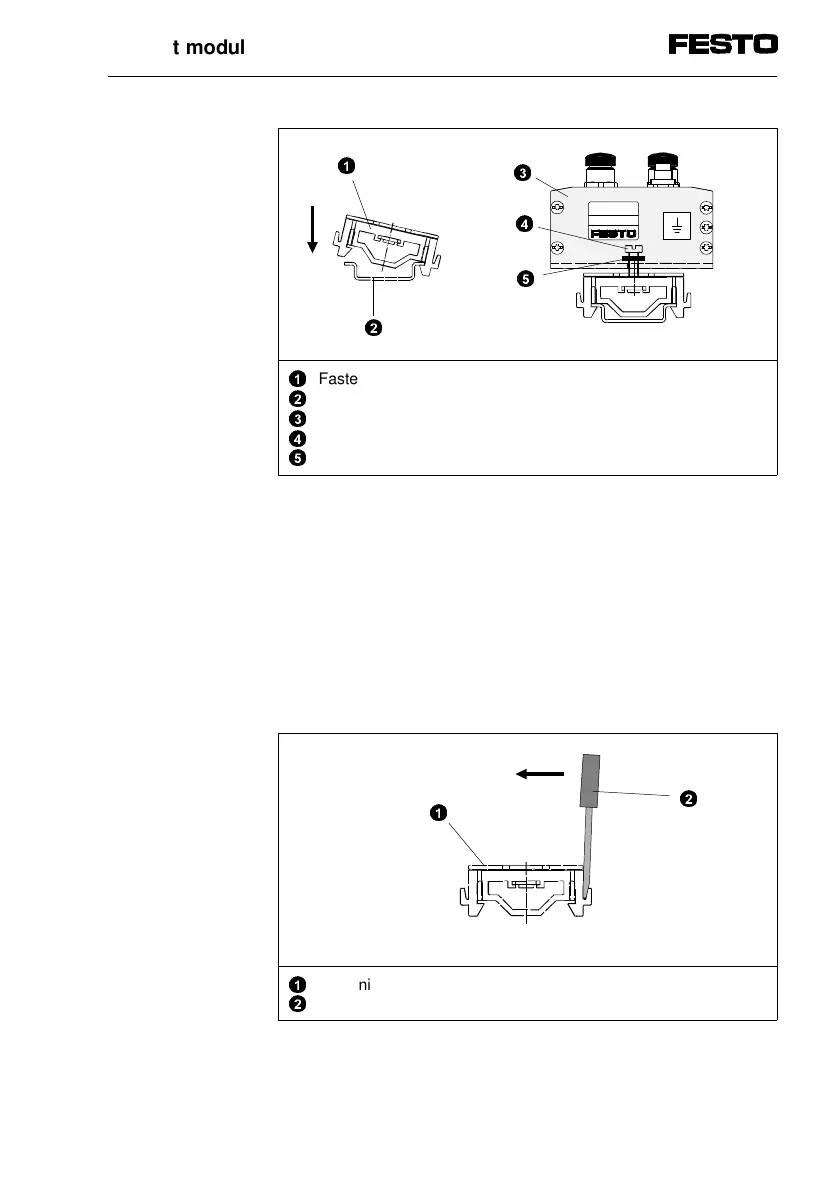

Fig. 1/3: Fitting on a hat rail
In order to remove the module from a hat rail, proceed
as follows:
1. Loosen the screws.
2. Remove the housing.
3. Use a screwdriver to prize open the hat rail and
remove the module.
1
2
Fastening
Screwdriver
Fig. 1/4: Removing the module
1
2
1
2
3
5
4
