Circuitry examples of CP-E16-M8 (PNP inputs)
Pin assignment
Circuitry examples
1
2
3
Three-wire sensor
Two-wire sensor
Contact
E = Input

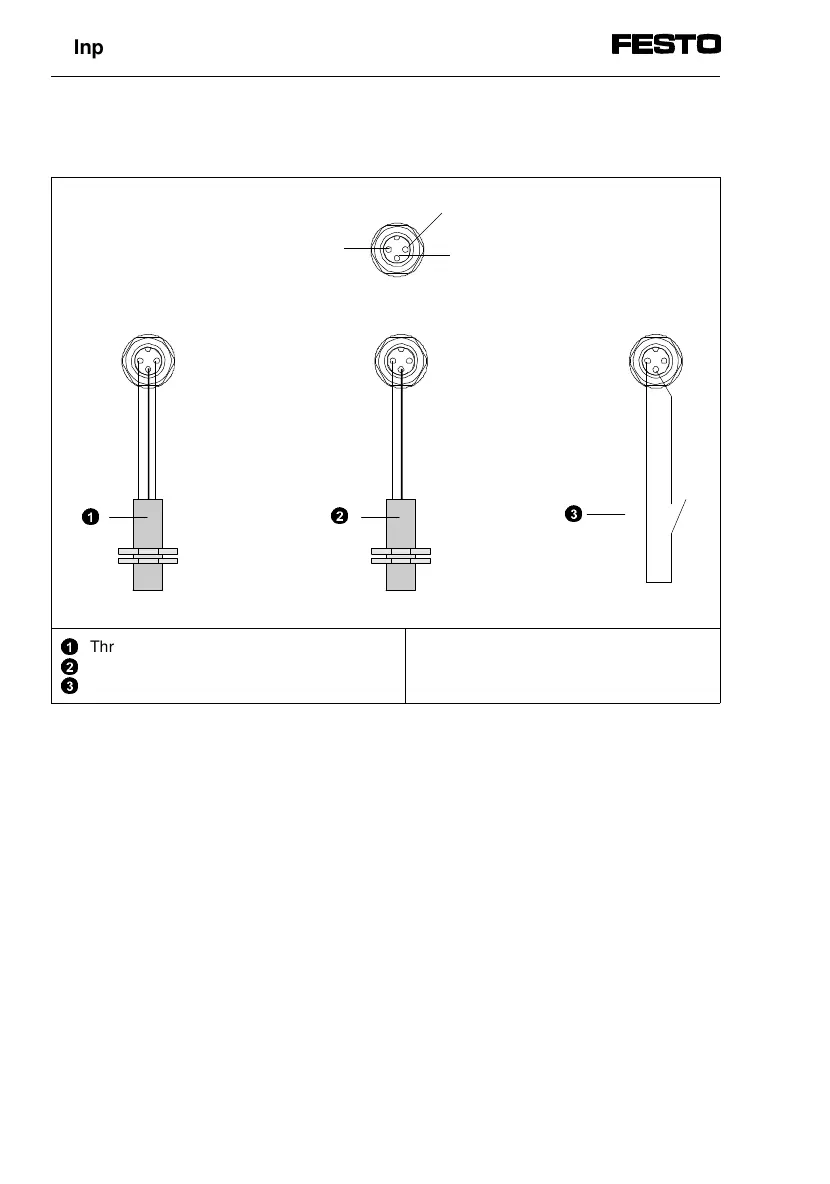

Fig. 1/7: Circuitry examples of input module CP-E16-M8
Pin 1: 24 V
Pin 3: 0 V
Pin 2: Ex
2
3
1
1. Input module type CP-E16...-M...
1-12 CP-E16...-M... 9611A
