Circuitry examples of CP-E16-M12x2 (PNP inputs)
Pin assignment
Circuitry examples
1
2
3
2-way distributor (T-piece)
Sensor 2 (Ex+1)
Sensor 1 (Ex)
E = Input

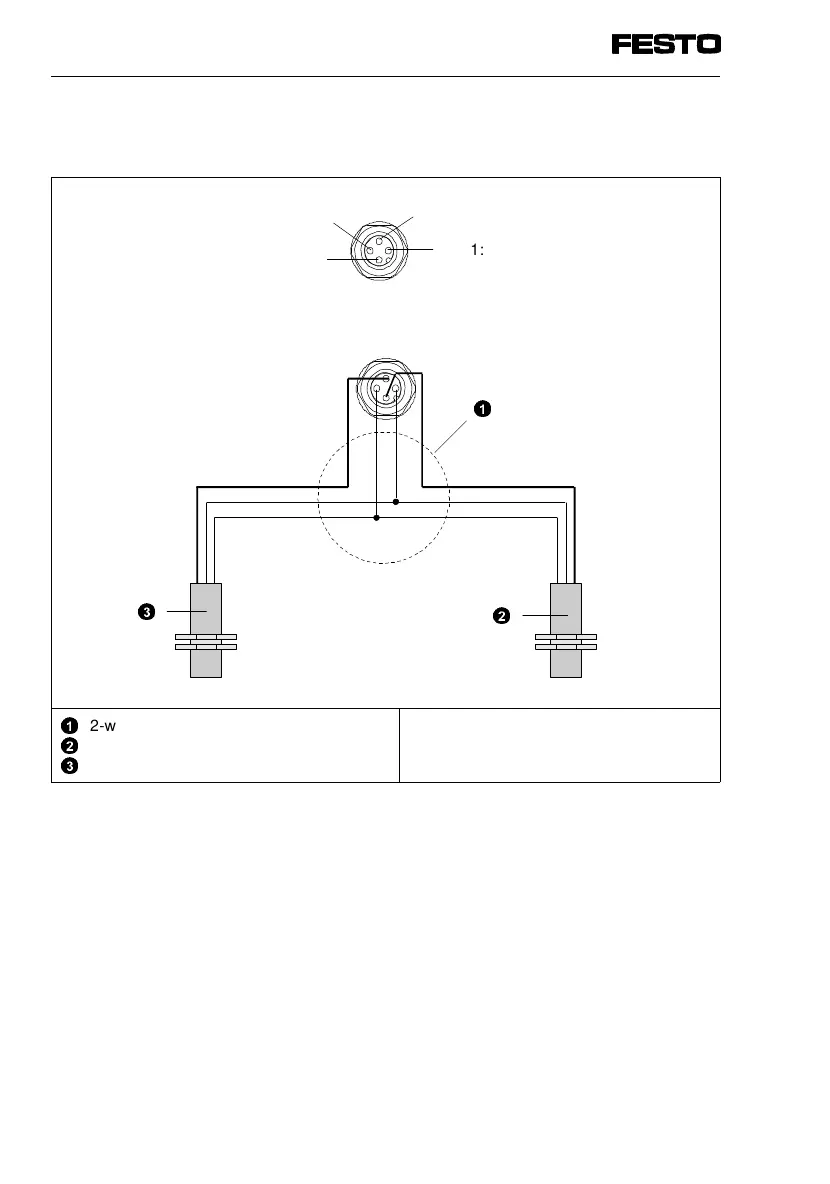

Fig. 1/9: Circuitry examples of input module CP-E16-M12x2
1
2
3
Pin 1: 24V
Pin 4: Ex
Pin 3: 0V
Pin 2: Ex+1
