Circuitry examples of CP-A08N-M12 (NPN outputs)
Pin assignment
Circuitry examples
1
2
3
Example 1
Example 2
Not permitted
A = Output
n.c. = not connected
*) Consuming device/load must be supplied
via this 24 V connection

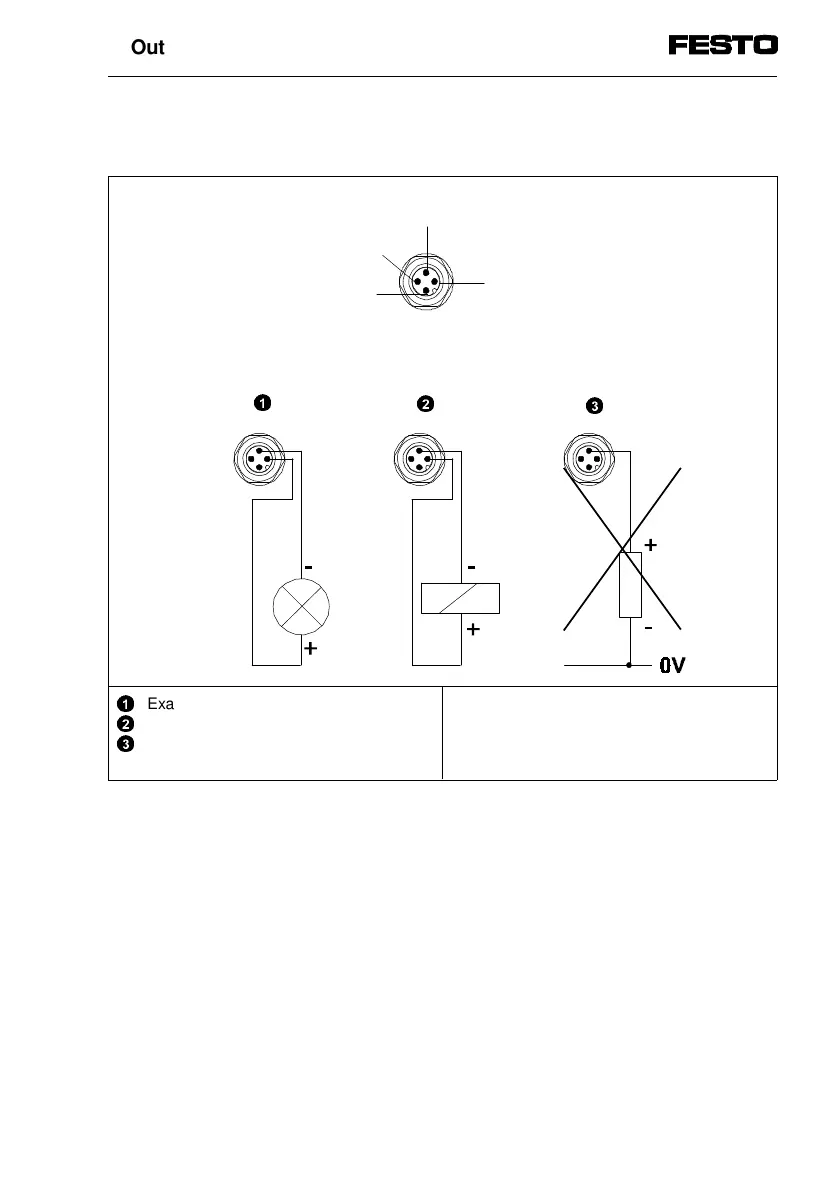

Fig. 2/8: Circuitry examples of output module CP-A08N-M12
Pin 1 : 24 V
*)
Pin 4: Ax+1
Pin 3: n.c.
Pin 2: PE
2
3
1
2. Output module type CP-A08...-M12
CP-A08...-M12 9611A 2-11
