Festo CPX-FB14 - DIL Switch 5: Diagnostics Mode

1. Installation
1-21
Festo P.BE-FB14-EN en 1411d English
Setting the diagnostics mode or the number of logical I/Os
(data field size) with DIL switch
5
The function of DIL switch 5 is dependent on the set operat
ing mode of the CPX terminal (è Tab. 1/1):
– Remote I/O operating mode:
setting the CPX diagnostic mode.
The status bits occupy 8 bits and the I/O diagnostic inter
face 16 bits in PDO 4 (bit 0 … 7 or 0 … 15, è Fig. 2/1).
– Remote controller operating mode:
64 I/Os are provided for communication of the bus node
with the FEC/CEC in PDO 1 (è Fig. 2/2).
Remote I/O operating mode
Remote controller
operating mode
Setting
DIL switch 5
Diagnostics mode Number of I/O bytes
(data field size)
I/O diagnostics interface and
status bits are switched off
(+ 0 I/O bits)
Reserved for future extensions 3.1: OFF
3.2: OFF
(factory setting)
The status bits are switched on
1)
(+ 8 (16) I bits)
3.1: OFF
3.2: ON
I/O diagnostics interface is
switched on
1)
(+ 16 I/O bits)
3.1: ON
3.2: OFF
Reserved for future extensions 8 bytes I/8 bytes O
for communication of the bus
node with the CPX-FEC or
CPX-CEC
3.1: ON
3.2: ON
1)
The diagnostics mode (status bits or I/O diagnostics interface) occupies 2 bytes or 4 bytes of
address space (16 I-bits or 16 I/O-bits; 8 I-bits remain unused in the status bits mode)

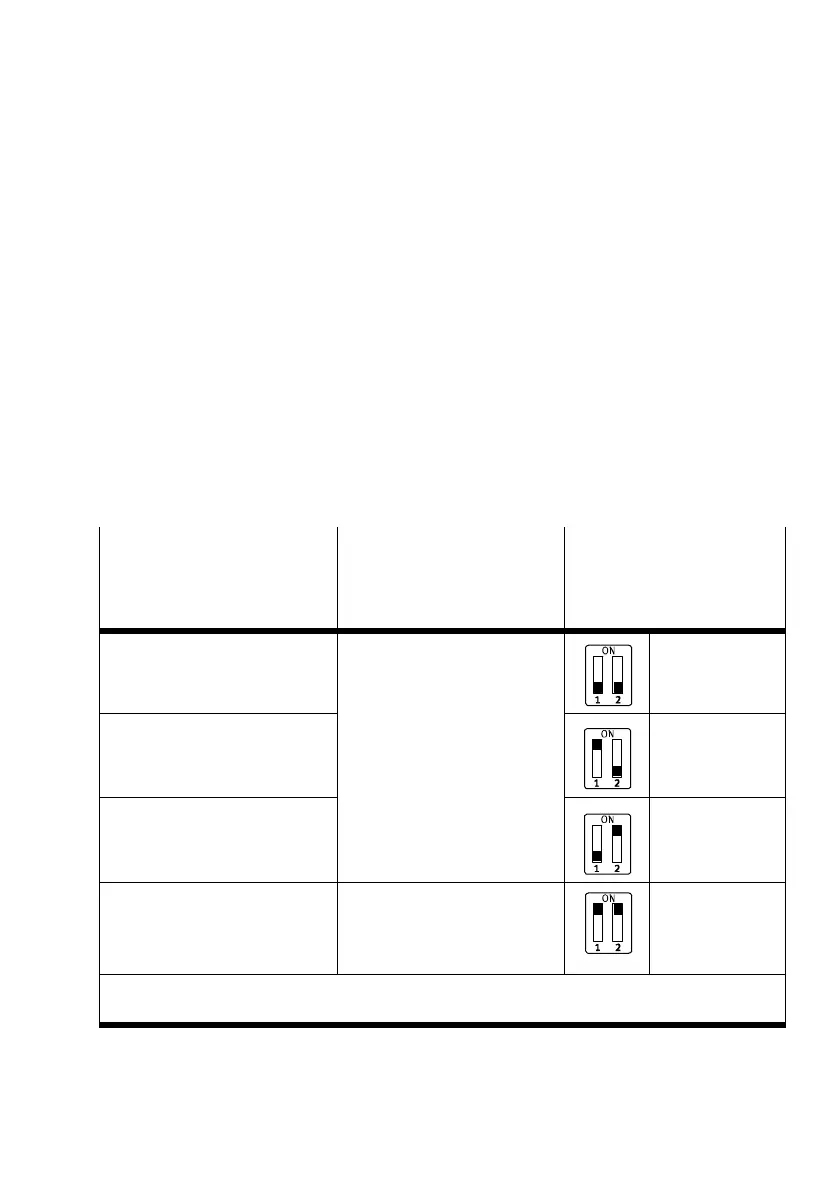

Tab. 1/10: DIL switch 5 (diagnostics mode or number of I/O bytes with remote
controller)
