Festo CPX-FB14 - Fieldbus Adapters; M12 Adapter (IP65)

1. Installation
1-31
Festo P.BE-FB14-EN en 1411d English
M12 adapter (IP65)
With this adapter the bus is connected via a 5-pin M12 socket
with PG9 fitting. Use the second connection socket for
continuation of the fieldbus.
Note
 Use protective caps to seal unused connections.
You will then achieve protection class IP65.
Order this connection from Festo (FBA-2-M12-5POL).
M12 adapter
Pin no.
5
2
3
4
1
5
1
4
3
2
1. Screening
2. 24 V DC bus (max. 4 A)
3. 0 V bus
4. CAN_H
5. CAN_L
Protective cap or plug with bus termination
resistor if connection is not used.
Bus IN
Bus OUT

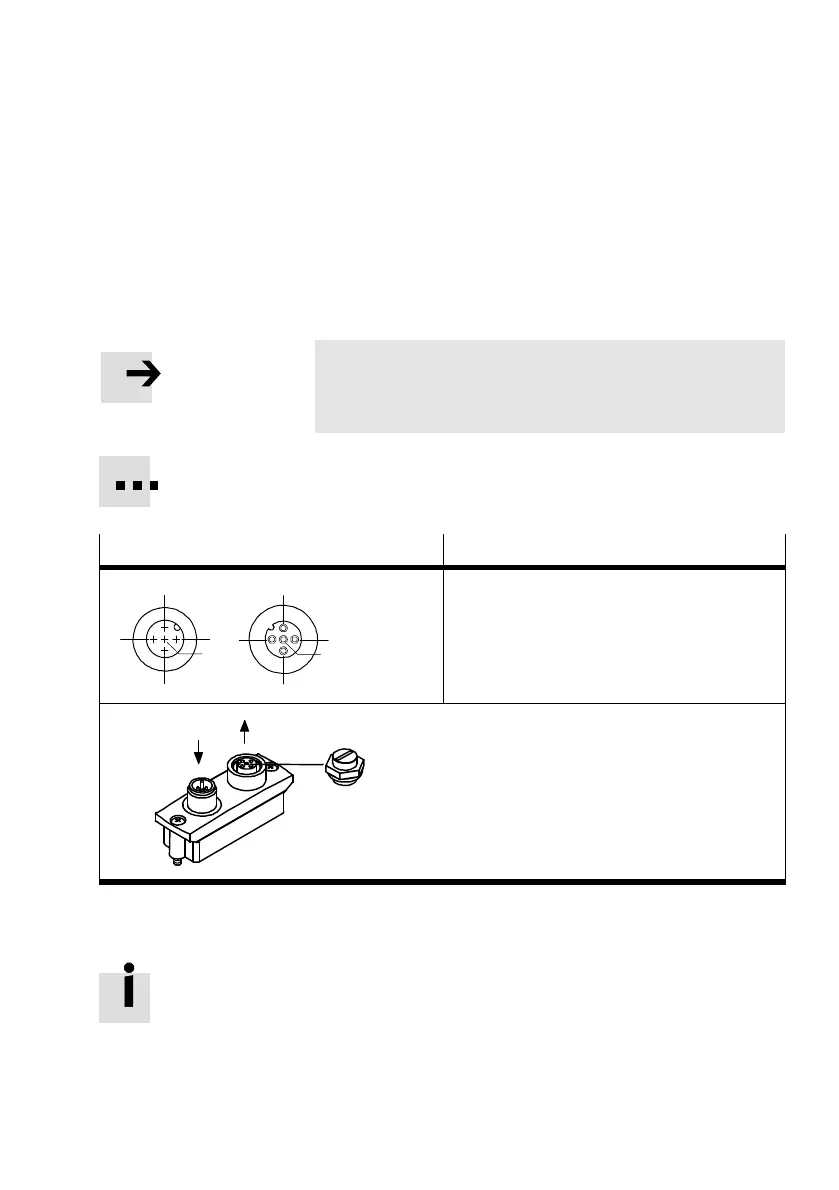

Fig. 1/8: Pin assignment of the fieldbus interface (adapter for 5-pin M12 connection)
With the two M12 connections, you can implement a
T-adapter (è Fig. 1/6).
