Festo DNCB - Repair Steps - Final Assembly; Attaching Bearing and End Caps

13 / 17Festo 7DNCBa_en

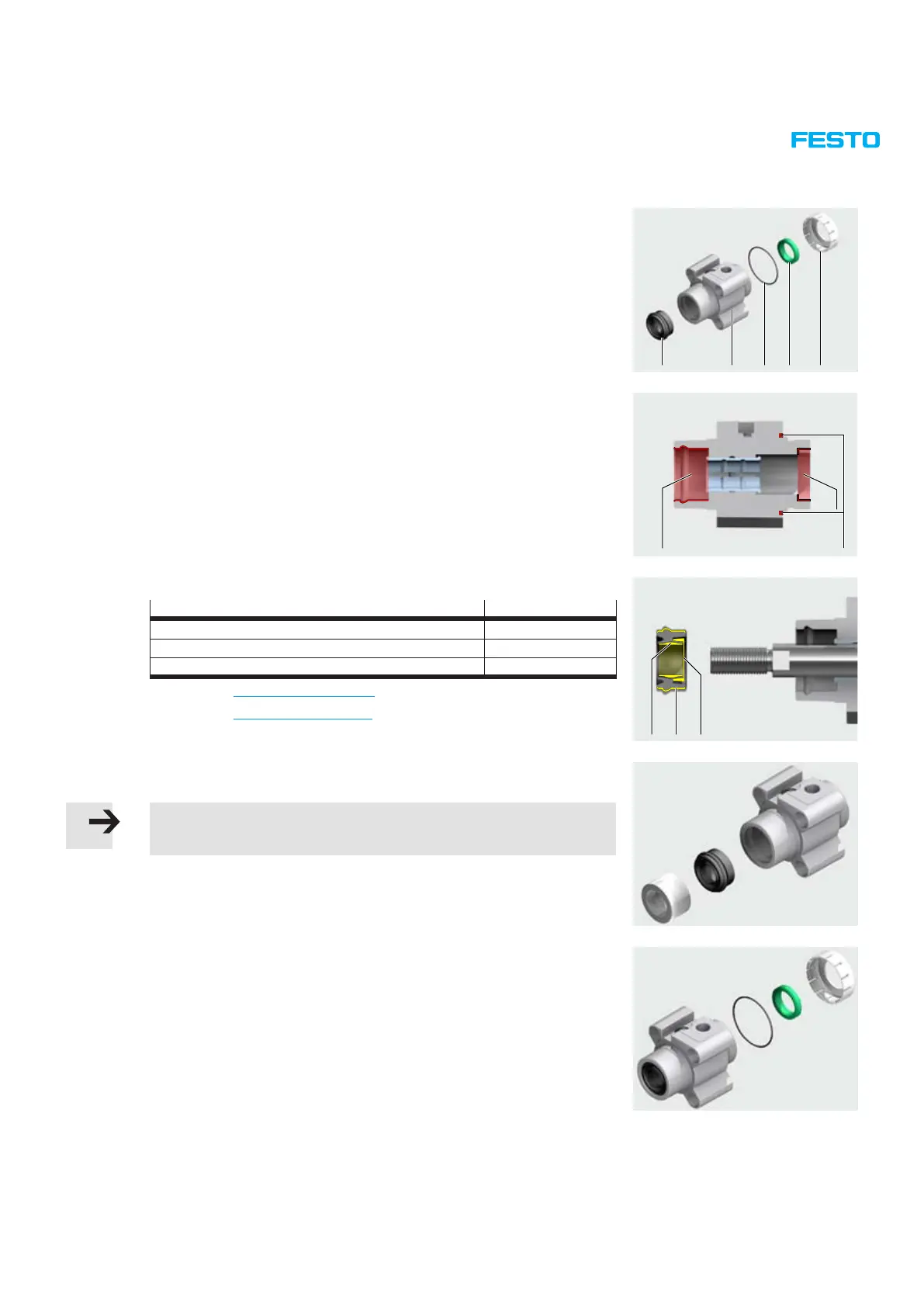

4.3.5 Repairing and attaching the bearing and end caps
• Remove the piston rod seal 1 from the bearing cap 2.
• Only with DNCB-32/40/50/63-…
Remove the holding discs 5 from the bearing cap and end cap.
• Remove the cushioning seal 4 from the bearing cap and end cap.
• Remove the O-ring 3 from the groove of the bearing cap and end cap.
1 2 3 4 5
• Clean the seat of the piston rod seal 1.
• Clean the seat of the cushioning seal 2.
• Clean the groove for the O-ring 3.
1
2
3
• Grease the new piston rod seal as follows:
Area Other cylinders
1 Grease reservoir
1)
for piston rod Fill 2/3 with grease
2 External surface for bearing cap Thin lm
2)
3 Grease reservoir
1)
for bearing Fill 2/3 with grease
1)
See section 5.2.3 “Grease reservoir”
2)
See section 5.2.2 “Thin grease lm”
1 2 3
• Insert the piston rod seal into the bearing cap using the appropriate insertion
tool.
Note
Note the mounting direction (inscription facing out).
• Grease the new O-ring and insert it into the groove in the bearing cap and
end cap.
• Apply a thin lm of grease to the new cushioning seals on the front side of
the sealing surface and insert them into the bearing cap and end cap.
• Only with DNCB-32/40/50/63-…
Place the new holding discs on the bearing cap and end cap.
