3 Component overview
3.1 DNCB-…

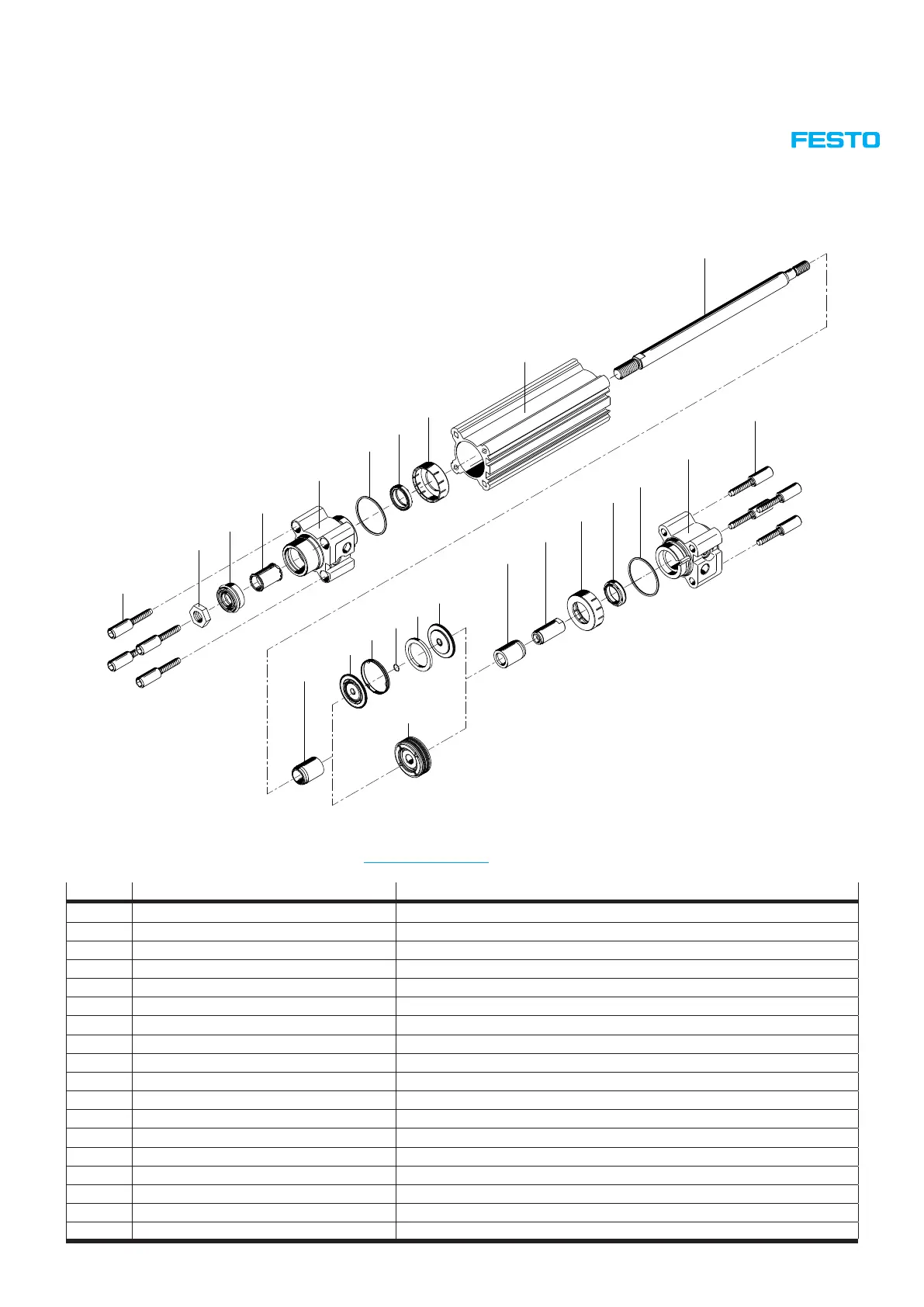

This diagram is intended only to provide an overview of the individual components. To order spare and wearing parts, please use the
online spare parts catalogue on the Festo website (spareparts.festo.com).
Item Designation Note
1 Flange screws Use screw locking agent (wearing parts kit)
2 Hexagon head screws
3 Piston rod seal
4 Bearing
5 Bearing cap
6 O-ring
7 Cushioning seal
8 Holding disc Only with DNCB-32/40/50/63-…
9 Cylinder barrel
10 Piston rod
11 Cushioning boss
12 Piston washer Only with DNCB-40/50/63/80/100-…
13 Guiding band Only with DNCB-40/50/63/80/100-…
14 O-ring Only with DNCB-40/50/63/80/100-…
15 Magnet Only with DNCB-40/50/63/80/100-…
16 Piston module Only with DNCB-32-…
17 Threaded coupling Use screw locking agent (wearing parts kit)
18 End cap
