2.4 Mounting directions

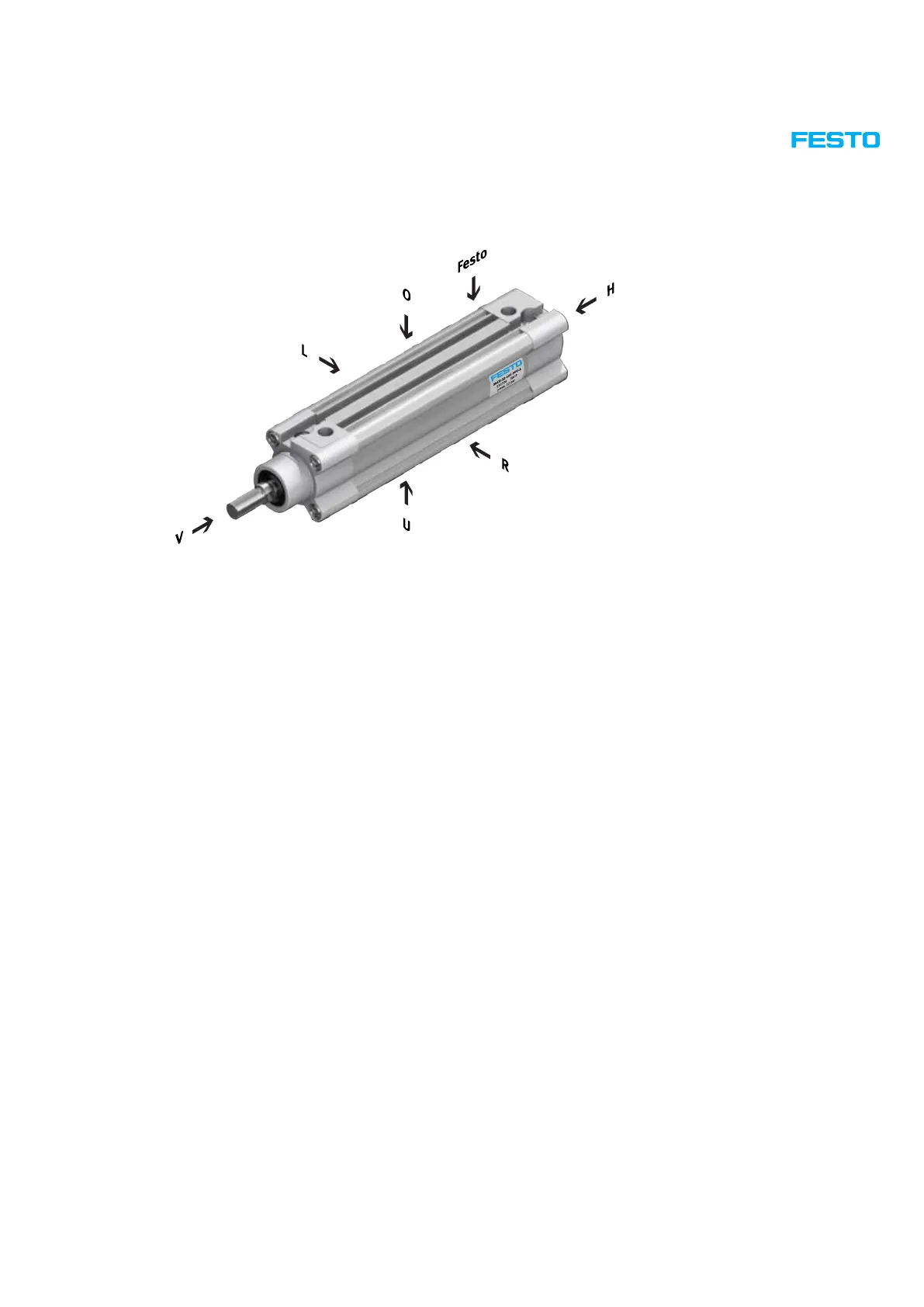

This diagram provides an overview of the orientation designations for the cylinder with piston rod.
Orientation:
Festo= product identication (rating
plate) as reference point
O = top
U = underneath
R = right
L = left
V = front
H = rear
