4 Radio Frequency
Copyright © Fibocom Wireless Inc. 46
4.1.3 RF Connector Dimensions
FM101 module uses standard M.2 RF connectors. The RF connector part number is
818004607 manufactured by ECT cooperation, and the size is 2×2×0.6mm. The connector
dimension is shown as following picture:

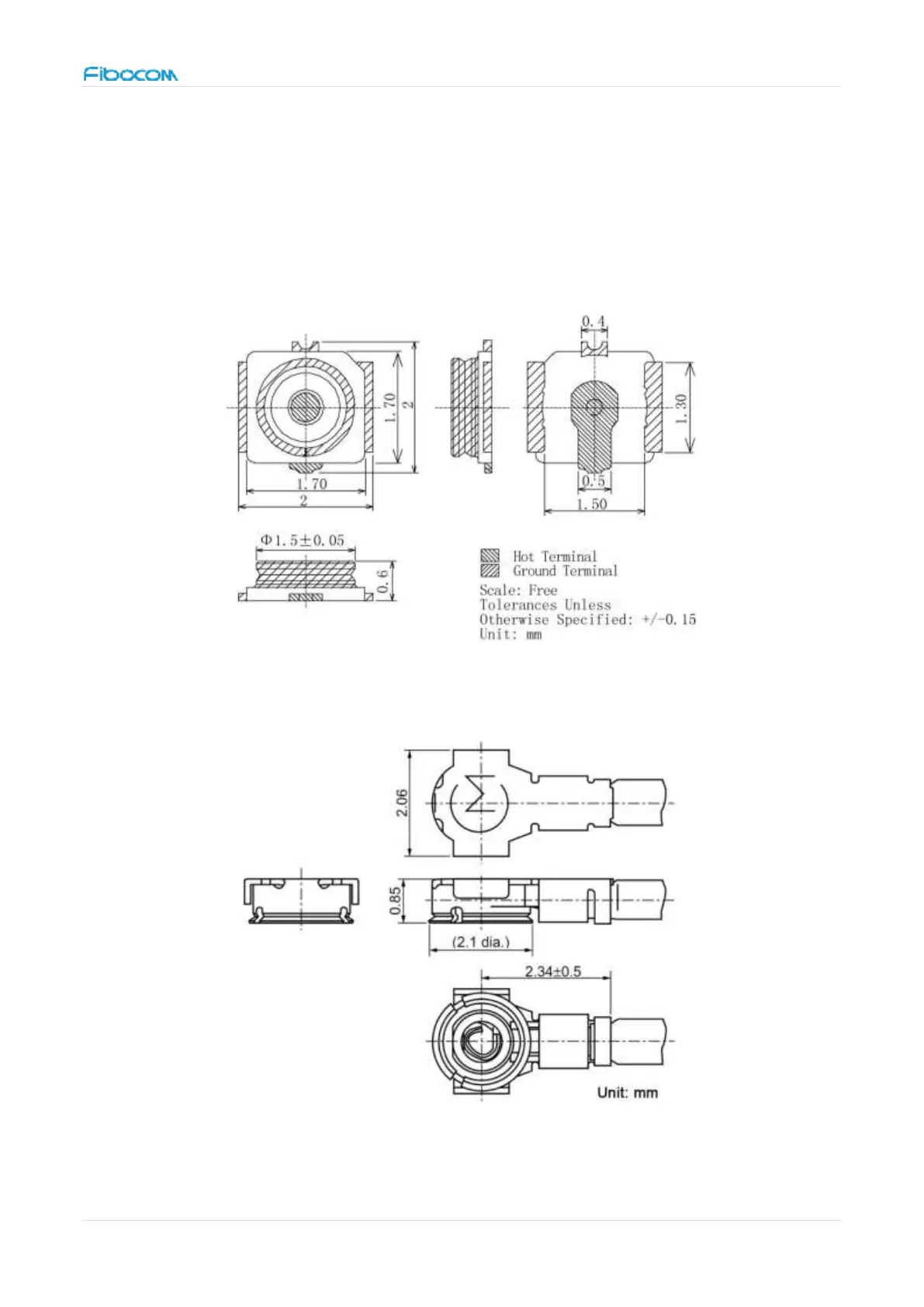

Figure 18. RF connector dimensions
Figure 19. 0.81mm coaxial antenna dimensions
