6 Structure Specification
Copyright © Fibocom Wireless Inc. 62

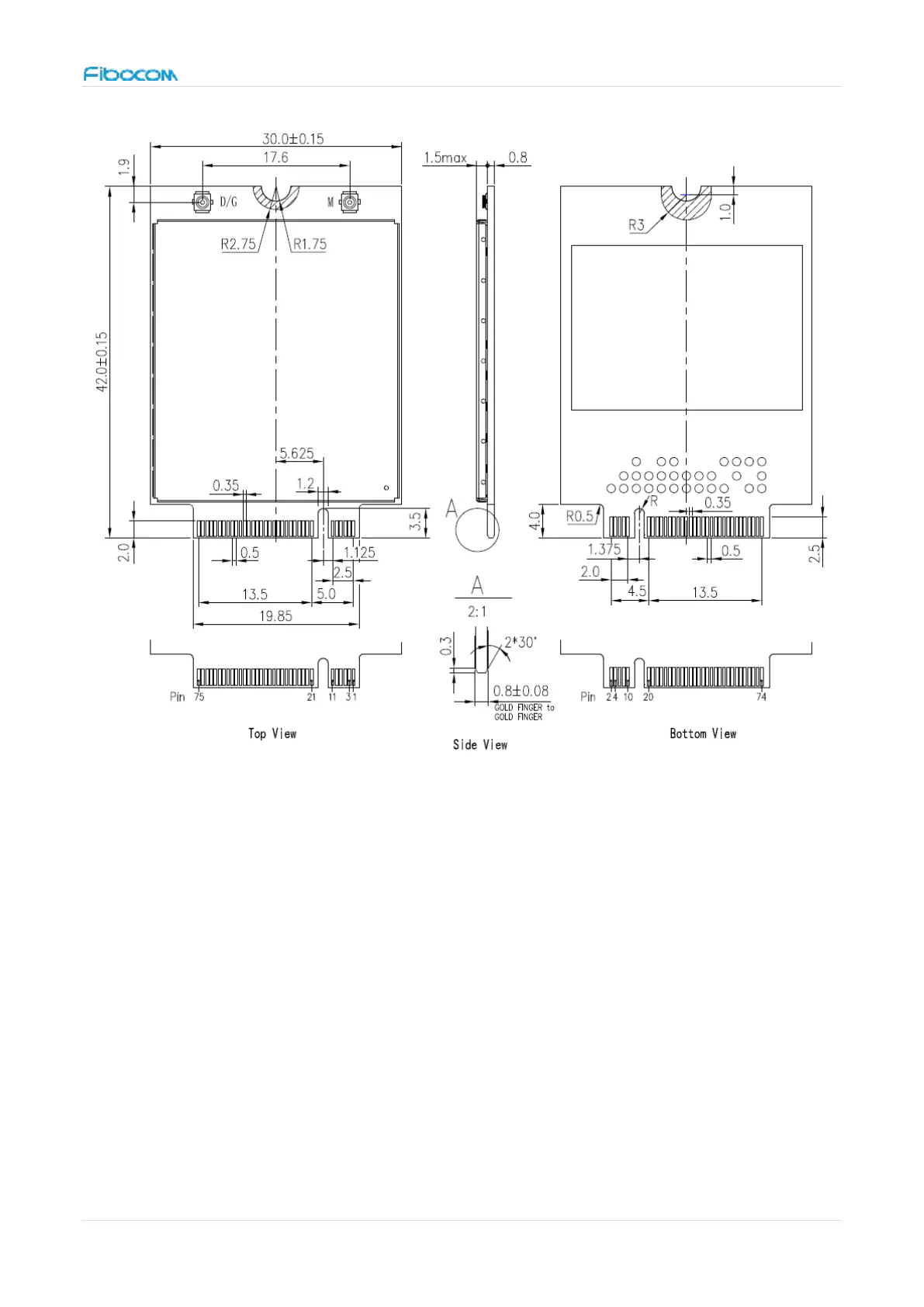

Figure 26. Dimension of structure
6.3 M.2 Interface Model
The FM101 M.2 module adopts 75-pin gold finger as external interface, where 67 pins are
signal pins and 8 pins are notch pins as shown in Figure 3. For module dimension, please
refer to Figure 27 Dimension of Structure. Based on the M.2 interface definition, FM101
module adopts Type 3042-S3-B interface (30 x 42 mm, the component maximum height
on t top layer is 1.5 mm, PCB thickness is 0.8 mm, and KEY ID is B).
