4 Radio Frequency
Copyright © Fibocom Wireless Inc. 47

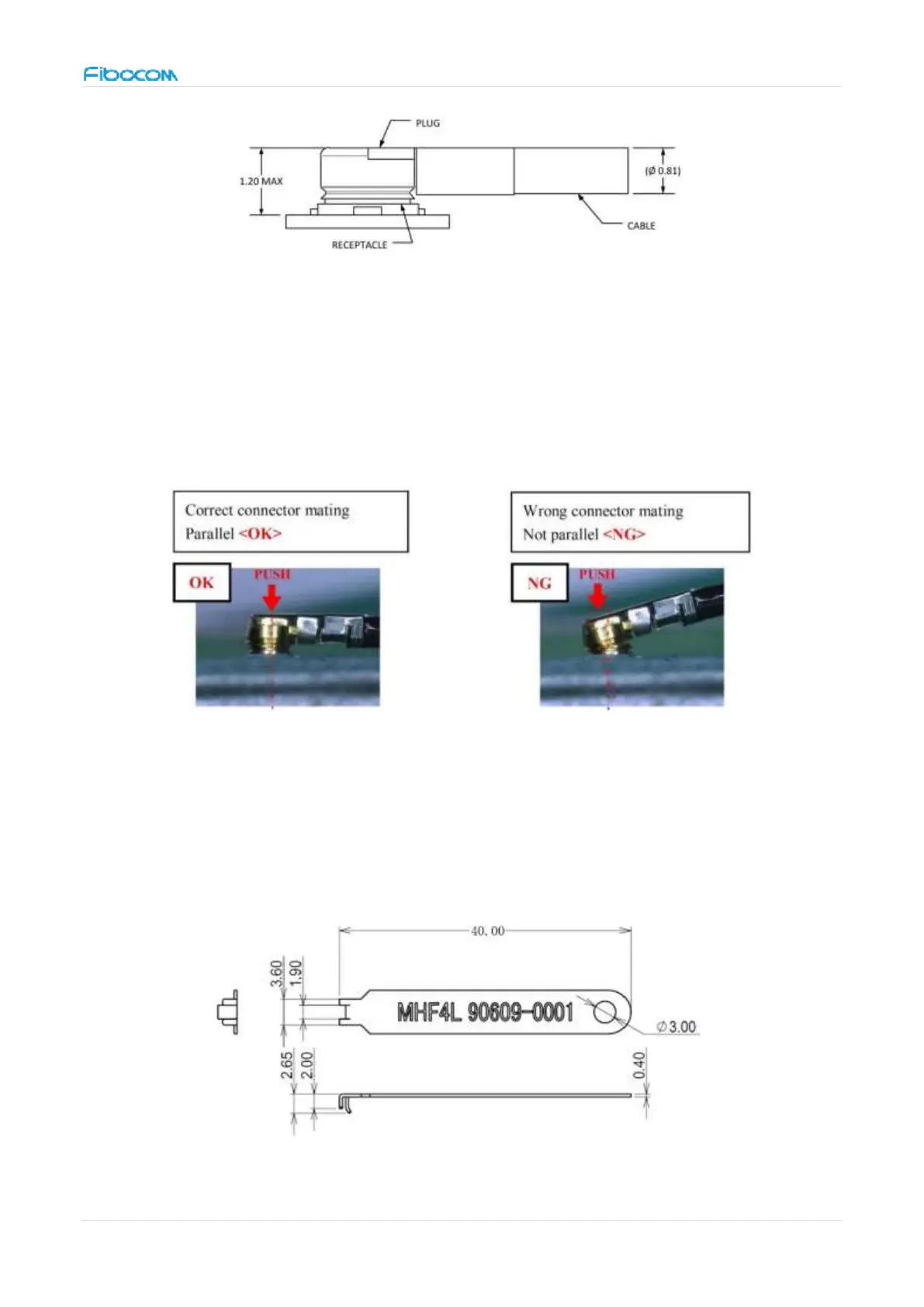

Figure 20. Schematic diagram of 0.81mm coaxial antenna connected to the RF
connector
4.1.4 RF Connector Assembly
Mate RF connector parallel refer Figure 21, do not slant mate with strong force.
Figure 21. Mate RF connector
To avoid damage in RF connector mating, it is recommended using pulling JIG as Figure 22,
and the pulling JIG must be lifted up vertically to PCB surface (see Figure 23 and 24). Pulling
JIG must be lifted up vertically to PCB surface (see Figure 23 and 24).
