Fibocom FM101-GL User Manual

6 Structure Specification
Copyright © Fibocom Wireless Inc. 66

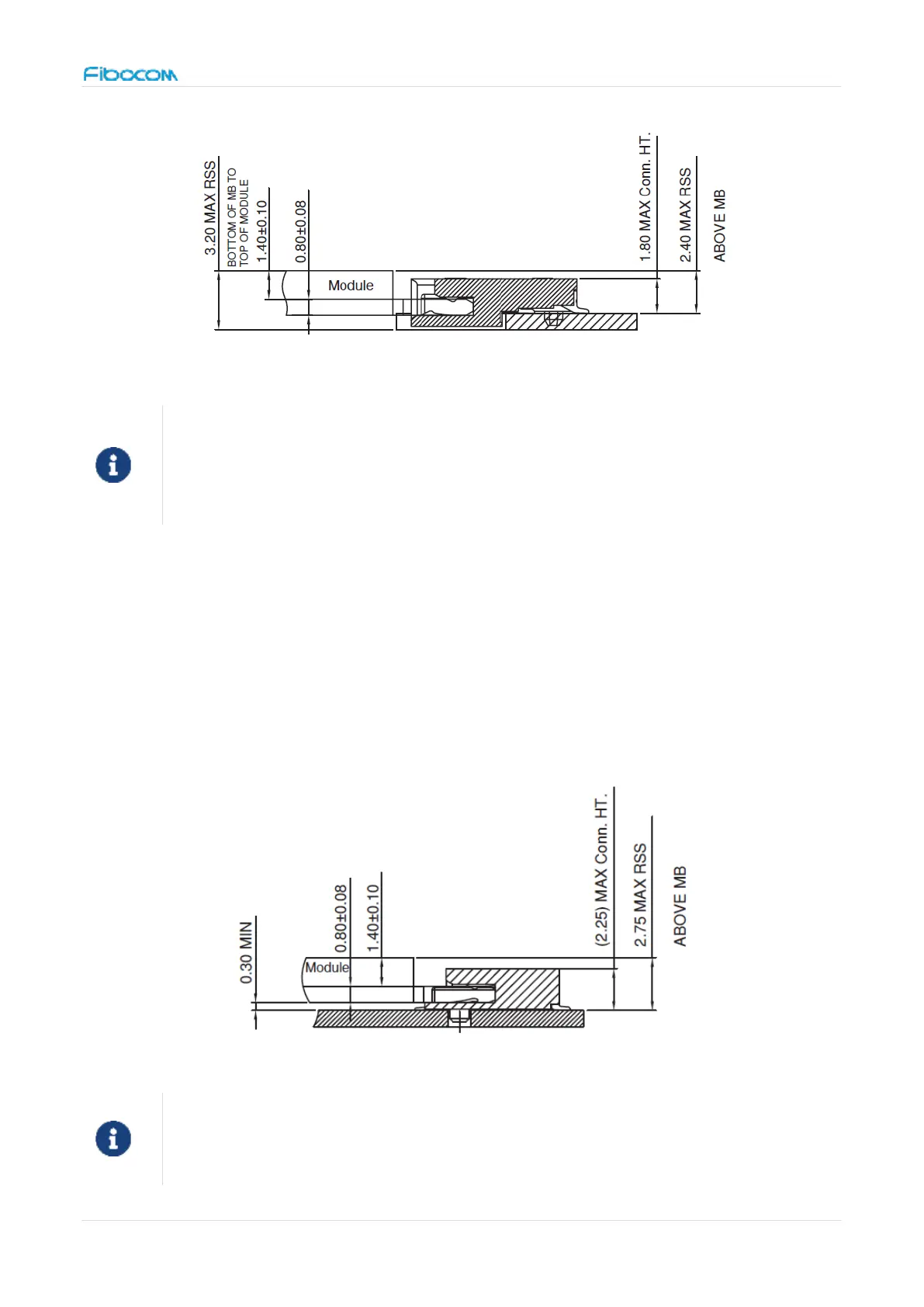

Figure 32. Stack-up mid-mount single-sided module
2.4 mm maximum above mother board
Suggest to cut the area of mother board under M.2 module
6.5.1 Top-mount Connection with Single-Sided Module
Stack-up top-mount single-sided module is shown in Figure 33. The maximum height of
components is 1.5 mm.
Figure 33. Stack-up top-mount single-sided module
2.75 mm maximum above mother board. Full keep out area 30 mm × 42 mm
