Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved
FIBOCOM L610 Series Hardware Guide Page 15 of 59
3 Application Interface
3.1 LCC+LGA Interface
L610 modules adopt LCC 80PIN+LGA 64PIN packaging, with a total of 144 pins.
3.1.1 Pin Distribution

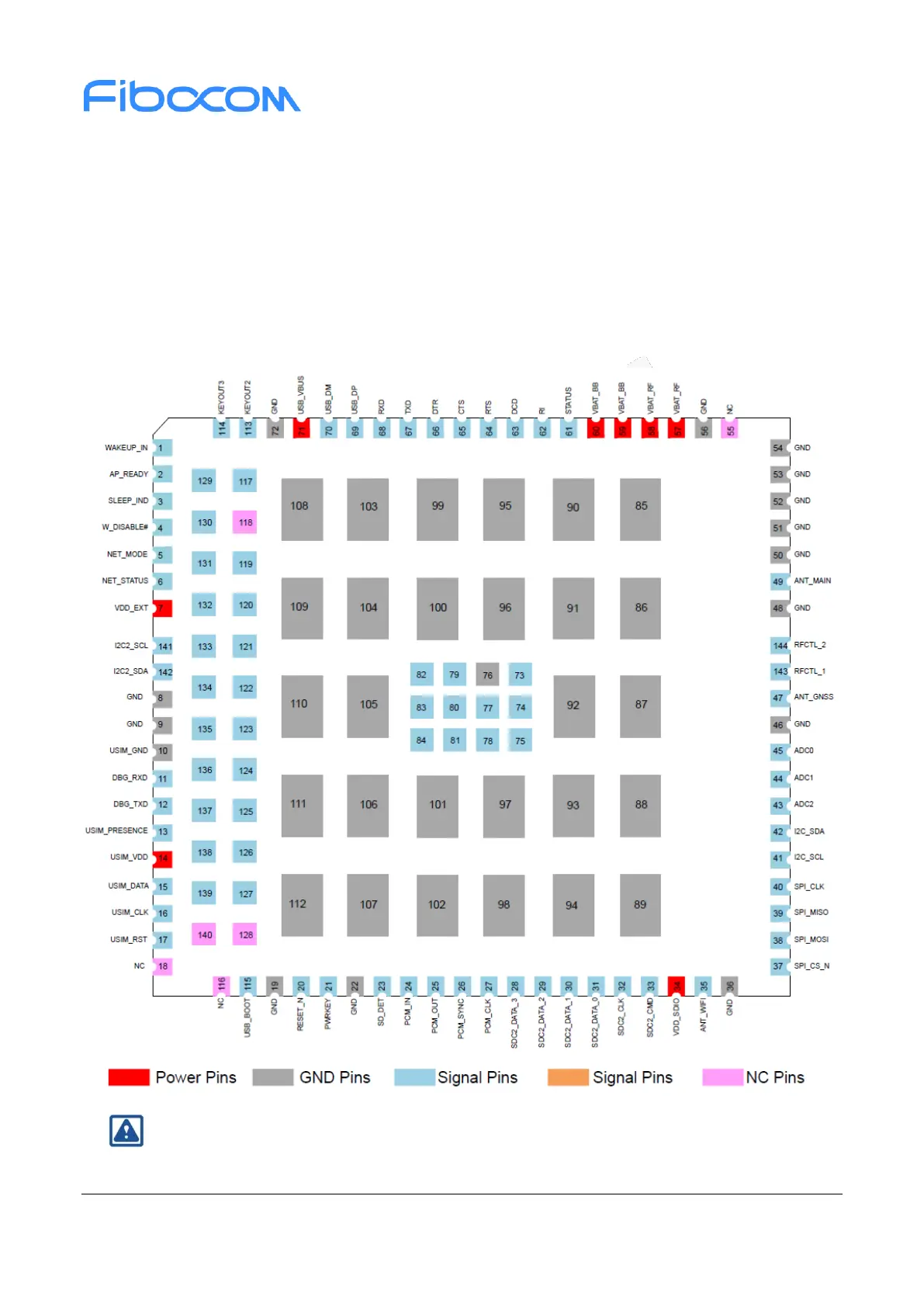

Figure 3-1 Pin Distribution diagram (TOP plan perspective view)
Note:
“85-->112” is the thermal pin, and the module is grounded internally. It is recommended that the
