Fibocom L610 Series User Manual

Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved
FIBOCOM L610 Series Hardware Guide Page 42 of 59
Pin Name
I/O
Pin
Description
NET_MODE
O
5
Module status indicator
NET_STATUS
O
6
Reserved
STATUS
O
61
Reserved
L610 module network indicator NET_MODE status description.
Mode
NET_MODE
Description
1
Flash (600ms High/600ms Low)
 No SIM
 SIM PIN
 Registering network (T < 15s)
 Network registration failed
2
Slow flash (75ms Low /3000ms High)
Standby
3
Speed flash (75ms Low /75ms High)
Data link established
4
High
Sleep
5
Low
Voice call

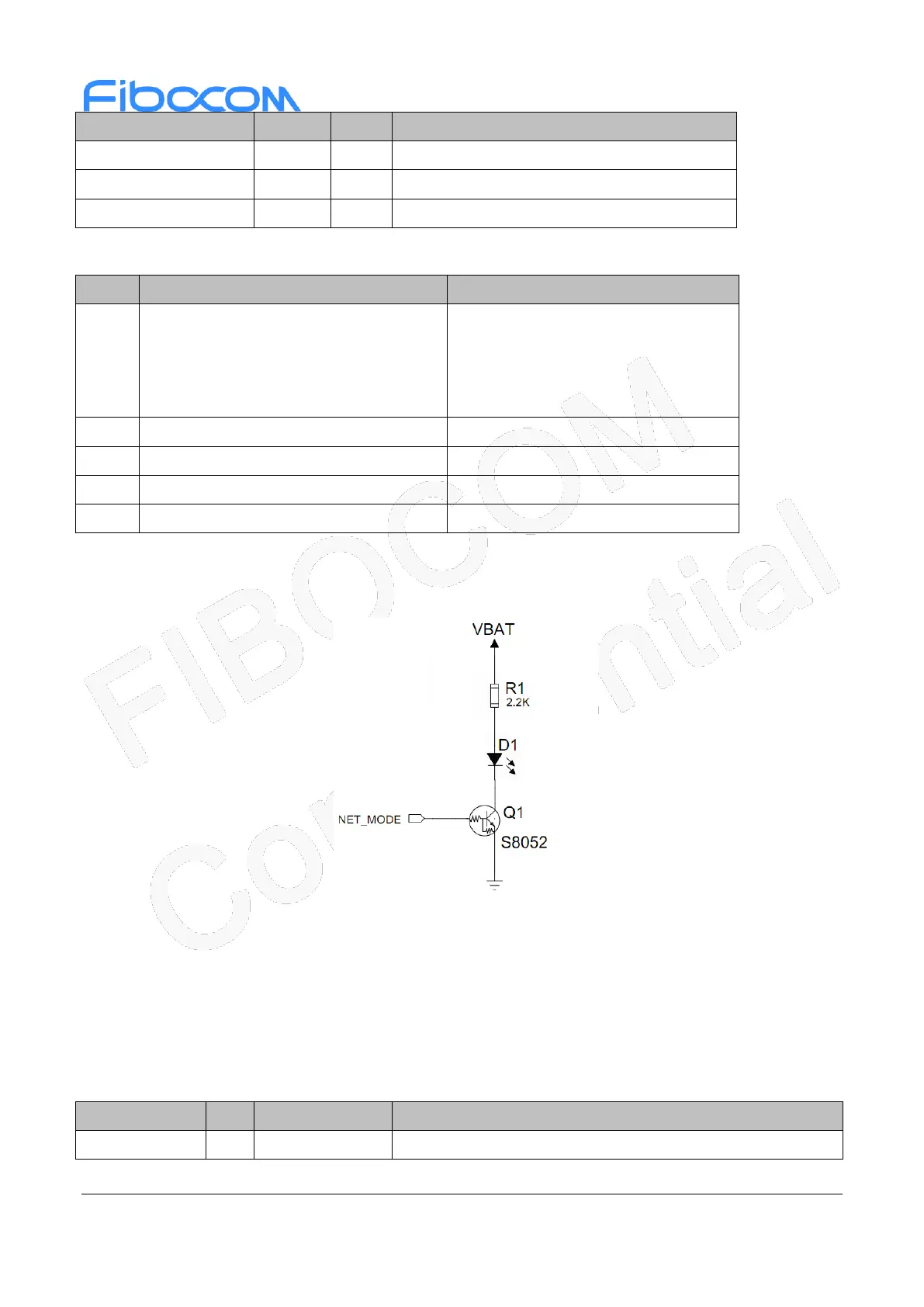

L610 module network indicator interface reference circuit is shown in Figure 3-19:
Figure 3-19 L610 module network indicator reference design
3.8 Low Power Consumption Mode
3.8.1 Flight Mode
W_DISABLE# pin description:
Pin Name
I/O
Pin
Description
W_DISABLE#
I
4
Module flight mode control
