Fimer TM 236 - Page 43

ITALIANO
ENGLISH
DEUTSCH
FRANÇAISESPAÑOL
7
22
23
24
26
25
27
28

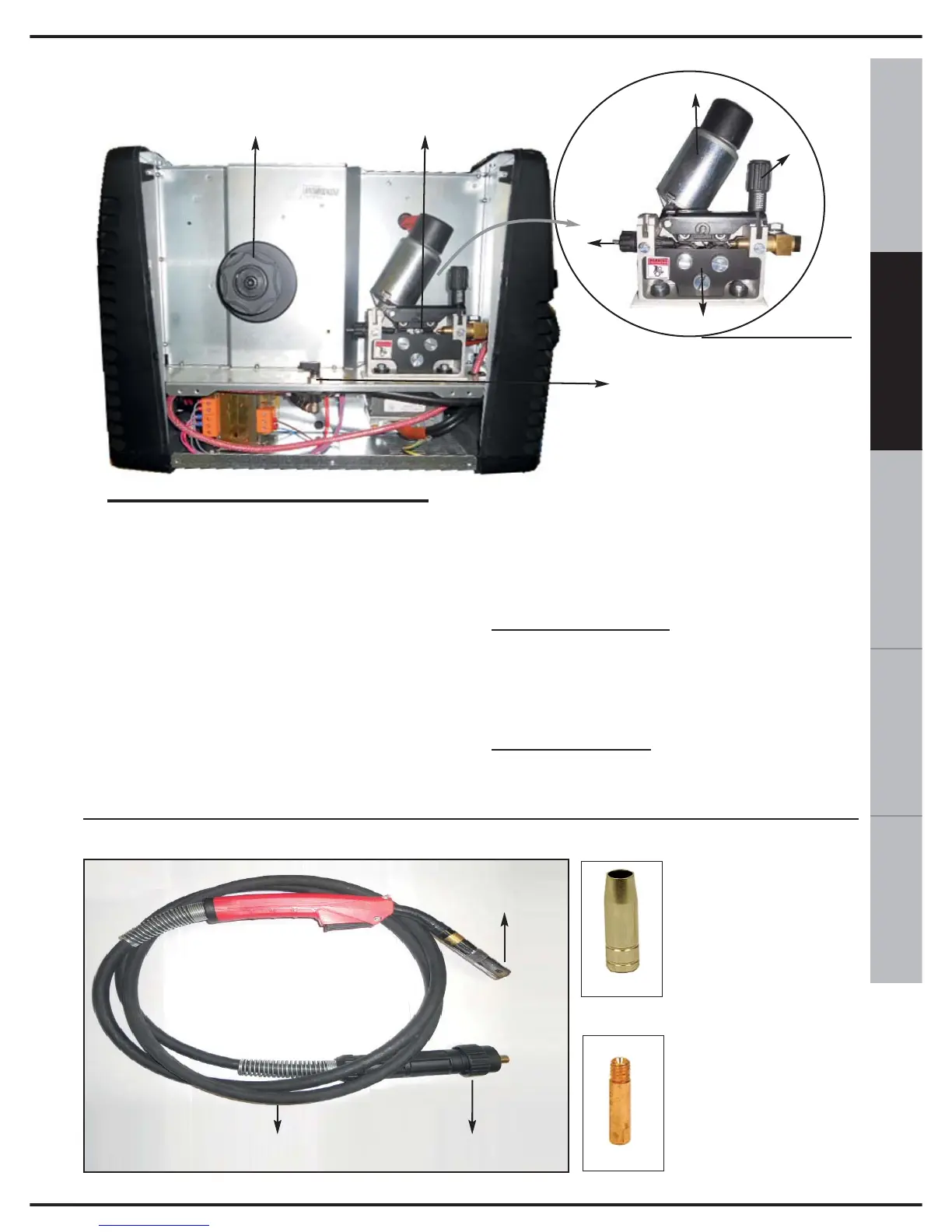

FIGURE 3:
22. WIRE SPOOL SUPPORT
The 300mm MIG welding spool requires an
external support (cod. 580.727.001)
23. WIRE FEEDER SYSTEM: see figure 3A
for a more detailed image.
24. WIRE-FEEDER MOTOR
25. WIRE TENSION REGULATOR: Adjusts
the tension of the welding wire.
26. INLET OF THE WIRE FEEDER MOTOR
27. WIREFEEDER SPOOLS
28. GAS VALVE: The Gas Valve can be
rotated in three positions.
GAS MIG Position:
The tap feeds the
Euroconnector with the gas from the cylinder
connection (19) (For MIG with GAS
welding).
GAS TIG Position:
The tap feeds the front
connection (14) with the gas from the
cylinder connection (19) (For TIG welding).
Fig. 3
Fig. 3A
WELDING TORCH
Fig.4A
Fig.4B
GAS
NOZZLE
WIREFEEDER
TIP
TORCH BODY
CABLE
EUROCONNECTOR
Fig.4
