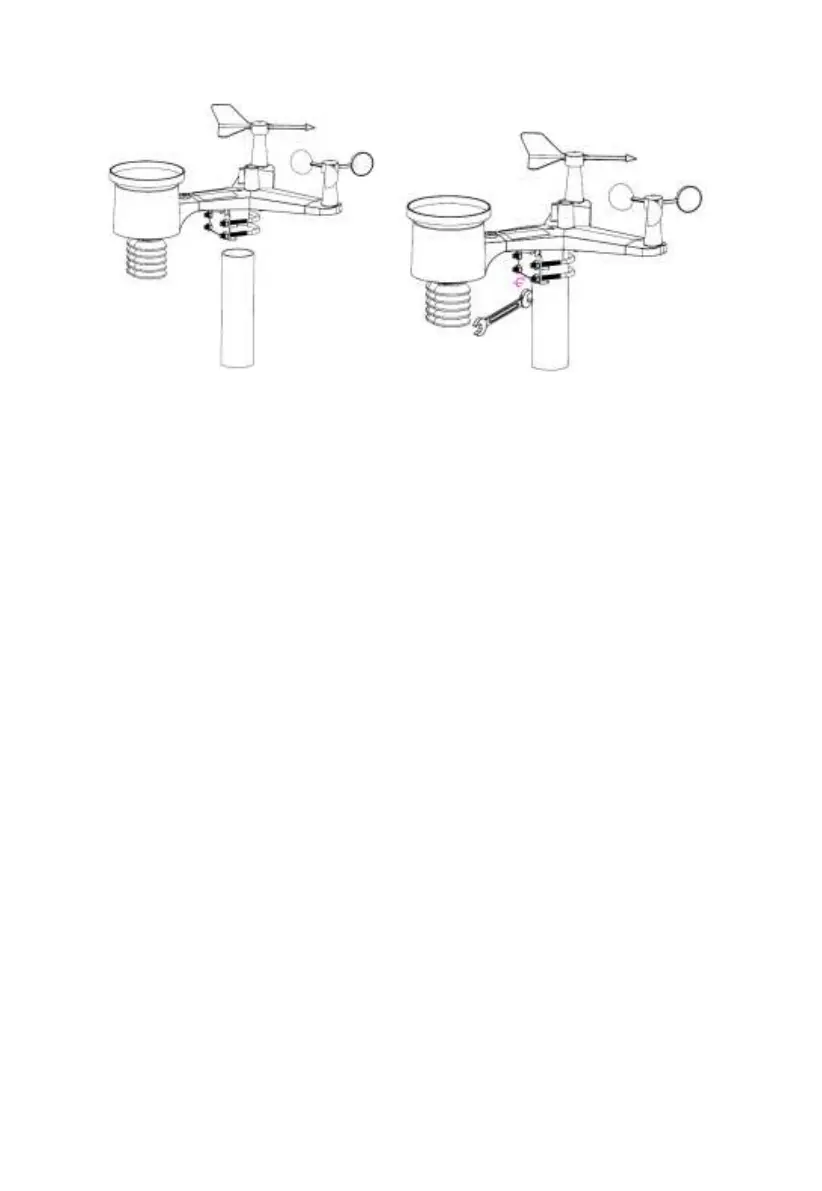

Figure 9: Sensor package mounting diagram
.
Note: If you tested the full assembly indoors and then came back here for
instructions and mounted to sensor package outdoor you may want to
make some further adjustments on the console. The transportation
from indoor to outdoor and handling of the sensor is likely to have
“tripped” the rainfall sensing bucket one or more times and
consequently the console may have registered rainfall that did not
really exist. You can use console functions to clear this from history.
Doing so is also important to avoid false registration of these readings
with weather services..
5.3.7 Reset Button and Transmitter LED
In the event the sensor array is not transmitting, reset the sensor array.
Using a bent-open paperclip, press and hold the RESET BUTTON (see
Figure 0) to affect a reset: the LED turns on while the RESET button is
depressed, and you can now let go. The LED should then resume as normal,
flashing approximately once every 16 seconds.
