Fine offset HP2550 - Console Display Overview

21
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
Table: RF Signal Strength reduction
5.7 Console Display
See 6 to help you identify elements of the console’s display screen.

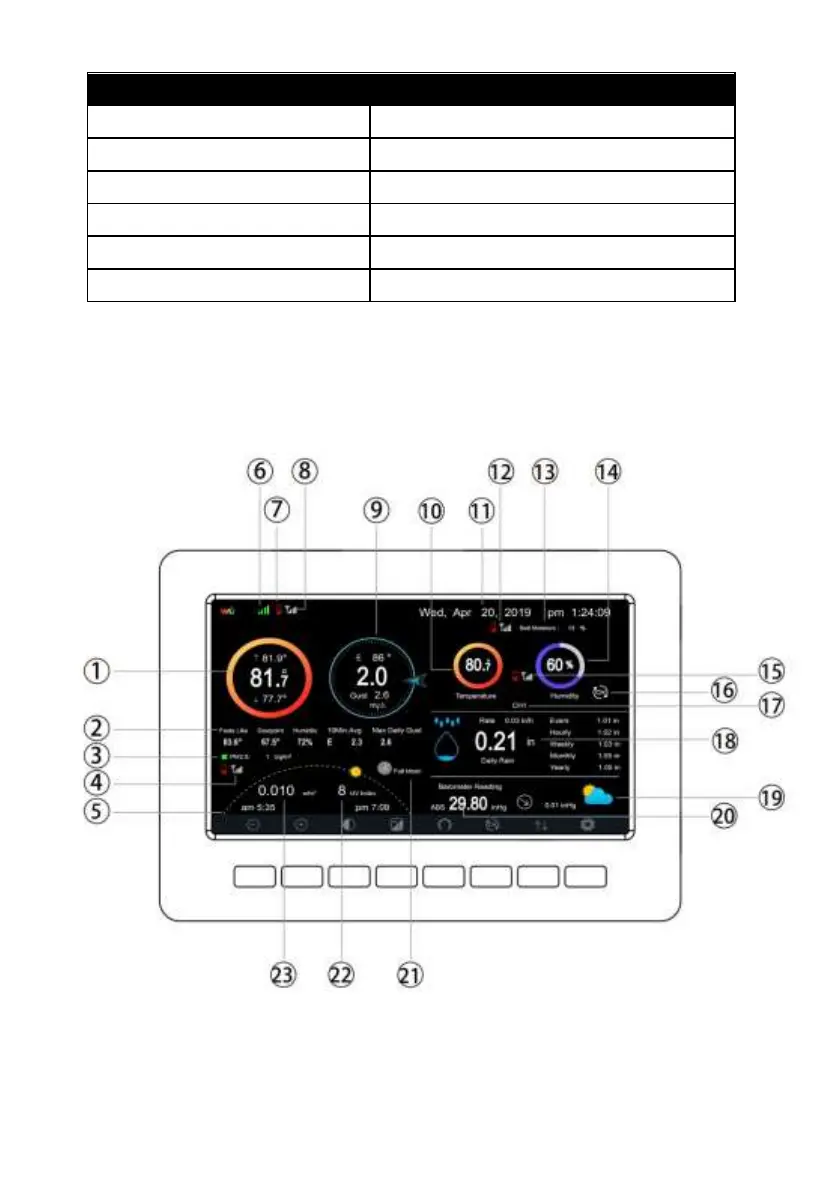

Figure 16: Display Console Screen Layout
